Trend MT/JIG Mortice And Tenon Jig Plus Cuter Set Offer

Product Ref:
TREMTJIG
Trend
Special
      Click & Collect in Store
    In Our Stock
    Ready For Despatch
ONLY £229.95 INC
£191.63 EXC
Order within 2 Days 7h 37m for next working day delivery on Tuesday 21st January
LOGIN TO ADD FAVOURITES
£1.75 LOYALTY POINTS
Trend MT/JIG Mortice And Tenon Jig Plus Cuter Set Offer
Product Ref:
TREMTJIG
Trend
    In Our Stock
    Ready For Despatch
ONLY £229.95 INC
£191.63 EXC
Order within 2 Days 7h 37m for next working day delivery on Tuesday 21st January
£229.95
INC
Buy At The Same Time Offers
TRESETMT1X14TC Trend 5 Piece MT/JIG Cutter Set Imperial
In Stock
Buy At Same Time
SAVE
£38.00
£46.95 INC
Add these Buy At The Same Time items to your basket after adding the main product to make additional savings
Features & Specification

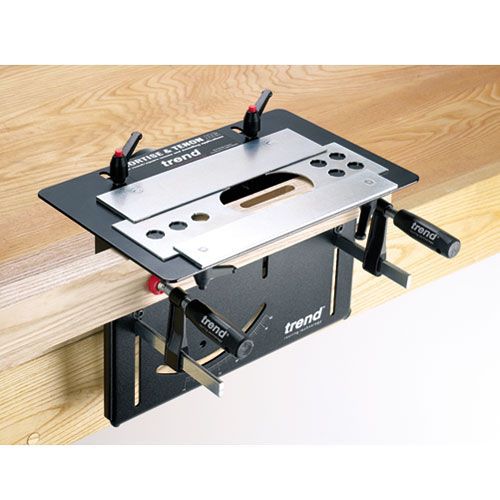

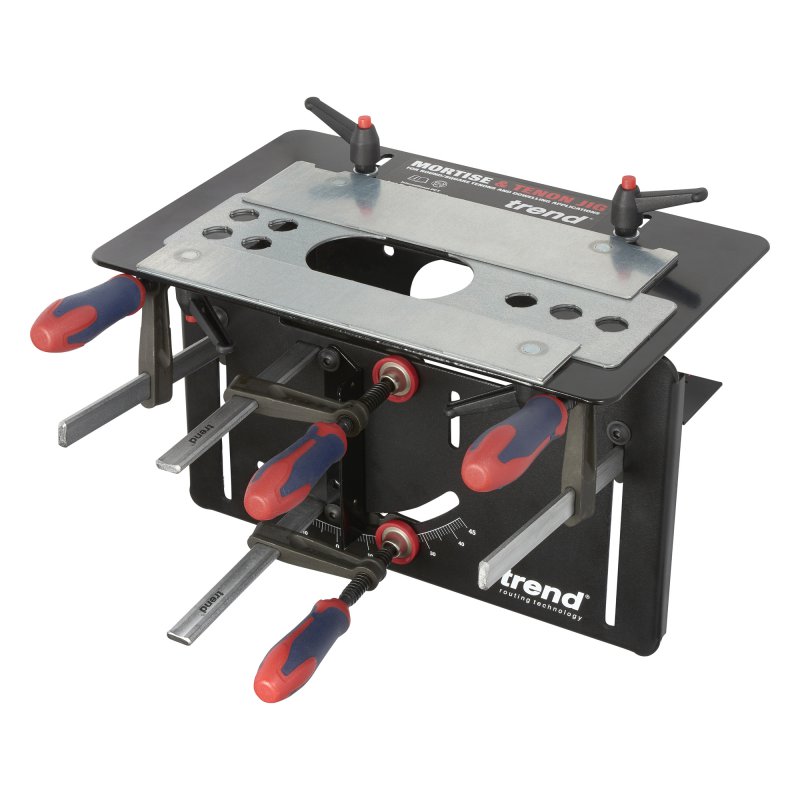

Trend MT/JIG Mortice And Tenon Jig

Enables mortise & tenons and dowel joints to be cut with a router to be cut with a router. Ideal for cabinet, chair and table.
  • CNC precision manufactured plates and body.
  • One set-up for both mortise and tenon giving perfectly fitting joints.

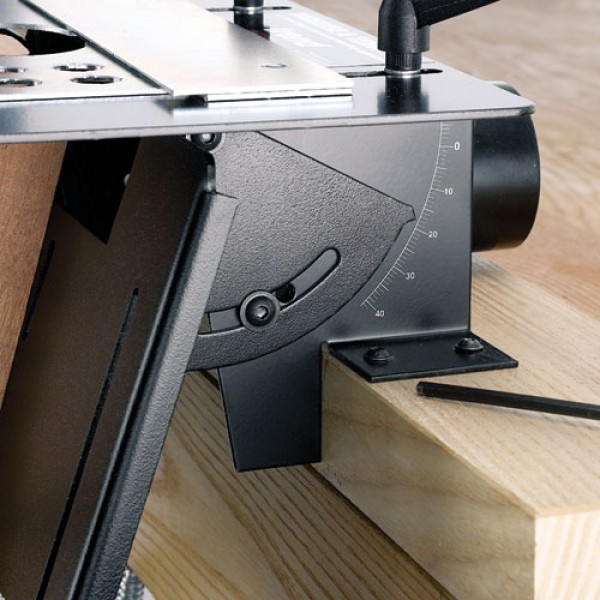

  • Fully adjustable for compound angle joints up to 45 degree.
  • Reversible templates to produce round and square end tenons. Templates can be used for accurate dowelling applications.
  • Cuts mortise & tenon sizes of 1/4inch (6.35mm) to 5/8inch (15.9mm).
  • Guide bushes are included but cutters are required.
  • A Unibase may be required for certain makes & models of router.
  • All tenons are cut with a 5/8inch diameter straight cutter (Ref. C026). The width of the tenon is adjusted by using different guide bush diameters.
  • International PCT Appl No. PCT/GB02/00253.
Specifications
  • Material thickness min. 12mm
  • Material thickness max. 47mm
  • Width of material max.+ 100mm
  • Tenon thickness min. 4.8mm
  • Tenon thickness max. 16mm
  • Tenon length max. using vertical guide 90mm
  • Angle tilt compound -10 degree to 45 degrees
  • + unlimited if wood repositioned
Tenon Width, Guide Bush Diameter& Ref, Cutter Ref
3/16", 4.76mm, 1 5/16", GB333, C003X1/4TC
1/4", 6.35mm, 1 1/4", GB318, C008X1/4TC
5/16", 7.9mm, 1 3/16", GB302, C012X1/4TC
3/8", 9.53mm, 1 1/8", GB286, C015X1/4TC
7/16", 11.1mm, 1 1/16", GB27, C018X1/4TC
1/2", 12.7mm, 1", GB254, C022X1/4TC
9/16", 14.3mm, 15/16", GB238, C024X1/4TC
5/8", 15.87mm, 7/8", GB222, C026X1/4TC

GUIDE BUSHES SUPPLIED WITH JIG:
GB222, GB254, GB286, GB302, GB318,
