Trend Hinge Jig Supplied With Case

(Router NOT included)

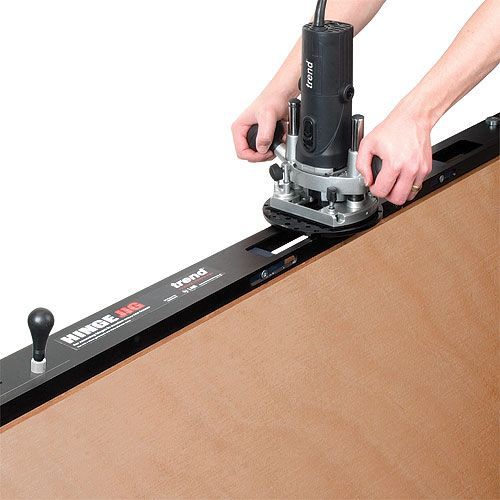

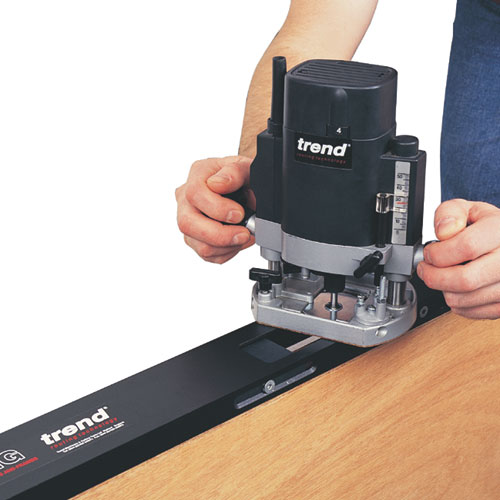

The single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with a plunge router.

  • It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
  • Used on-site & in joinery shops to increase productivity with excellent results.
  • Four apertures for fire door requirements.
  • No need for marking out in the conventional way.

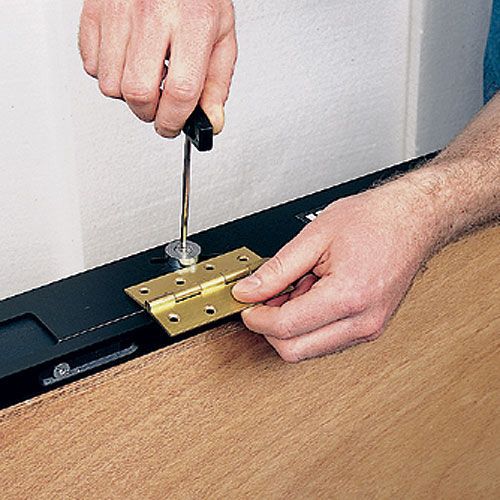

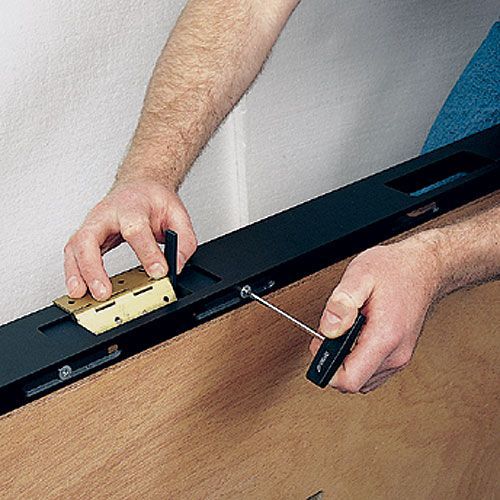

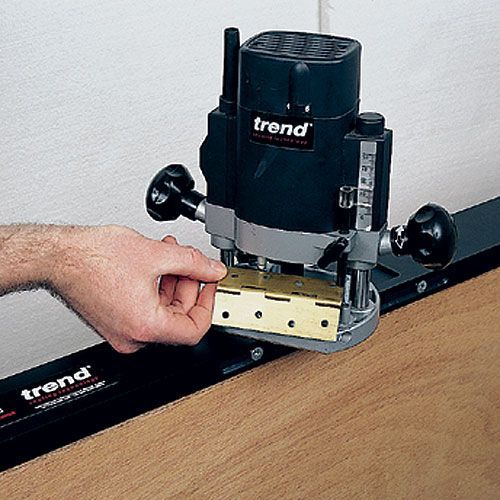

  • Quick & simple to set-up as the hinge is used as the pattern.
  • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
  • Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
  • Use with a light duty plunge router with 1/4 inch collet.
  • Long reach router cutter required, 12mm diameter with 70mm overall length.
  • Angled position slots to prevent creep.
  • Unibase may be needed.
  • T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.


Dimensions:
Hinge sizes possible

  • Length min.=2 5/8" (67 mm)
  • Length max.=5" (127 mm)
  • Width min.=3/8" (9.5 mm)
  • Width max.=1 3/8" (35 mm)
  • Width max. in 35mm rebate=20 mm
  • Width max. in 44mm rebate=30 mm

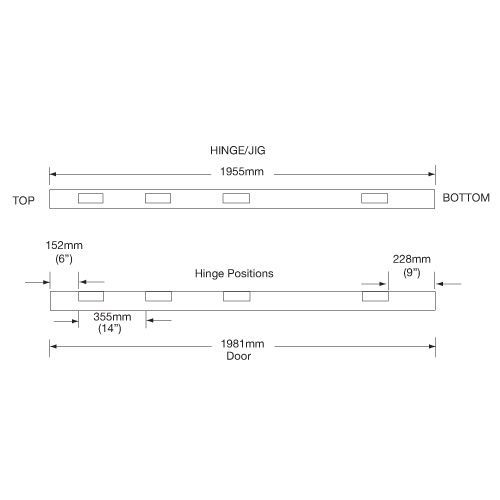

Door sizes possible

  • Height min.=6' 5" (1955 mm)
  • Height max.=2100 mm*
  • Thickness min.=5/8" (16 mm)
  • Weight=2.9 kg
  • Jig overall length=1957 mm
  • Plate thickness=2 mm
  • Fixed stop max. thickness=25 mm

* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
