Trend H/JIG/C Hinge Jig Skeleton Two Part + TR12 Cutter + Trend Corner Chisel + Case

Product Ref:
TREHJIGCAV
Trend
Special
      Click & Collect in Store
    In Our Stock
    Ready For Despatch
ONLY £249.95 INC
£208.29 EXC
Order within 2 Days 0h 33m for next working day delivery on Tuesday 24th December
LOGIN TO ADD FAVOURITES
£1.00 LOYALTY POINTS
Trend H/JIG/C Hinge Jig Skeleton Two Part + TR12 Cutter + Trend Corner Chisel + Case
Product Ref:
TREHJIGCAV
Trend
    In Our Stock
    Ready For Despatch
ONLY £249.95 INC
£208.29 EXC
Order within 2 Days 0h 33m for next working day delivery on Tuesday 24th December
£249.95
INC
Included Items
Product Ref: TREHJIGC
Trend H/JIG/C Hinge Jig Skeleton Two Part In Case
Qty: 1
Product Ref: TRECCHISEL
Trend Corner Chisel
Qty: 1
Product Ref: TRETR12X14TC
Trend TR12X14TC 12mm Long Reach Cutter (For TREHINGEJIG)
Qty: 1
Features & Specification

Trend H/JIG/C Hinge Jig Skeleton Two Part + TR12 Cutter + Trend Corner Chisel + Case


*********PROMOTION*******

PACKAGE DEAL:

HINGE RECESSING JIG + TR12 CUTTER + TREND CORNER CHISEL + CASE

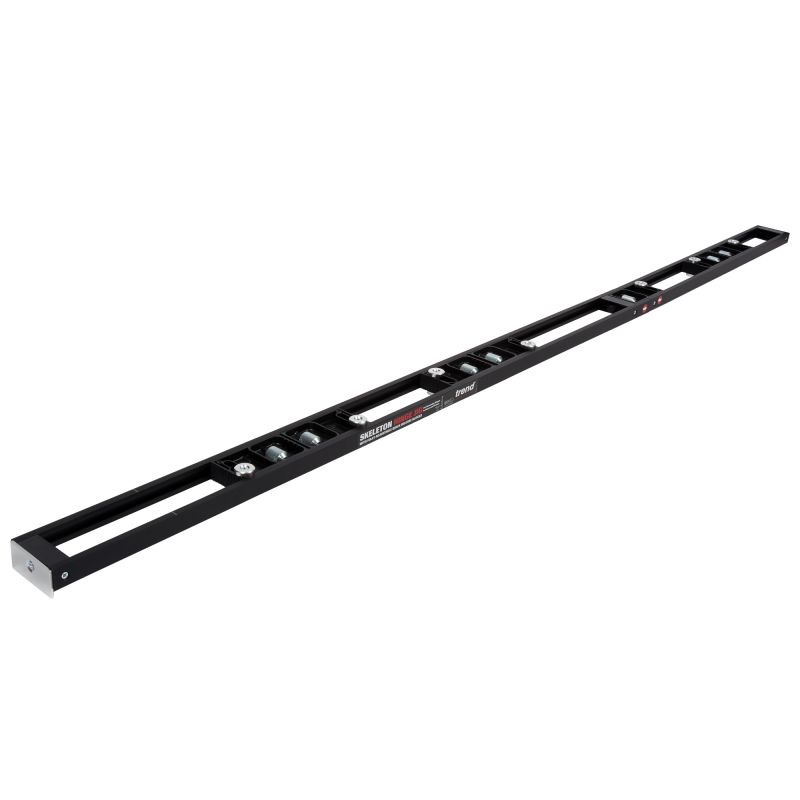

  • Two part adjustable block portable template set designed for recessing hinges in wooden doors & frames with a router.
  • It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
  • Used on-site & in joinery shops to increase productivity with excellent results.
  • Fully adjustable apertures for fire door requirements and renovation work.
  • Idea for fitting a new door in an old frame.
  • No need for marking out in the conventional way.
  • Quick & simple to set-up as the hinge is used as the pattern.
  • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
  • Can be used on both inside and outside doors.
  • Use with a light duty plunge router with 1/4 inch collet.
  • Long reach router cutter required, 12mm diameter with 70mm overall length.
  • Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
  • Unibase may be needed.
  • Patent No. GB2490139
  • T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Dimensions:
  • Hinge sizes possible
  • Length min.=2 5/8" (67 mm)
  • Length max.=5" (127 mm)
  • Width min.=1/2" (12.7 mm)
  • Width max.=1 3/8" (35 mm)
  • Width max. in 35mm rebate=23 mm
  • Width max. in 44mm rebate=32 mm

Door sizes possible
  • Height min.=6' 5" (1956 mm)
  • Height max.=2100 mm* (6' 10"*)
  • Thickness min.=5/8" (16 mm)
  • Thickness max.=2" (51 mm)
Weight= 2.9 kg
Jig overall length=1956 mm
* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.

Contents:

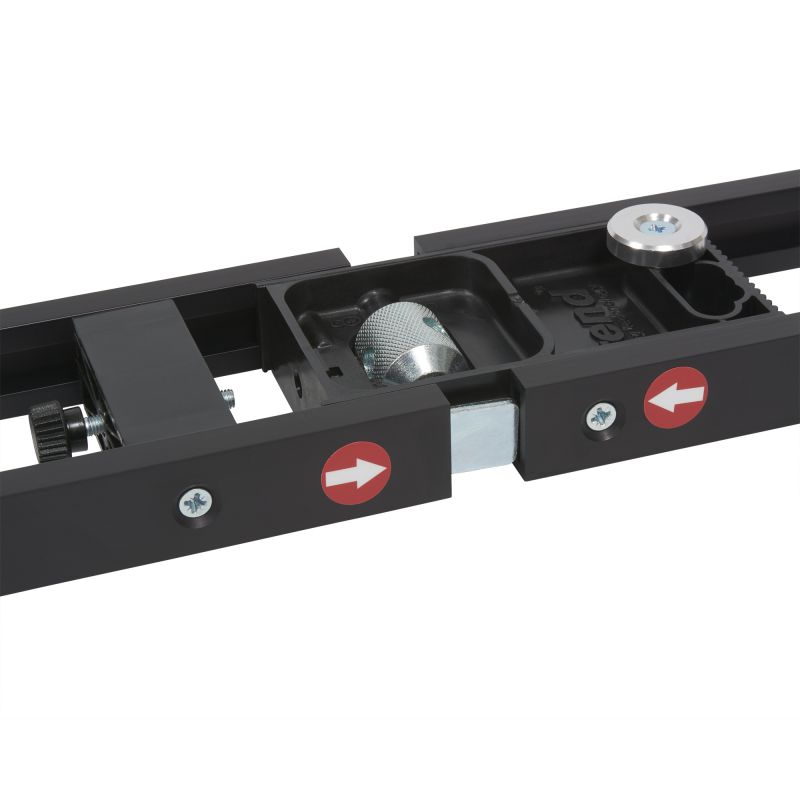

  • 3 x Hinge sliding aperture block assemblies
  • 4 x Bradawls (short blade)
  • 1 x 16mm guide bush

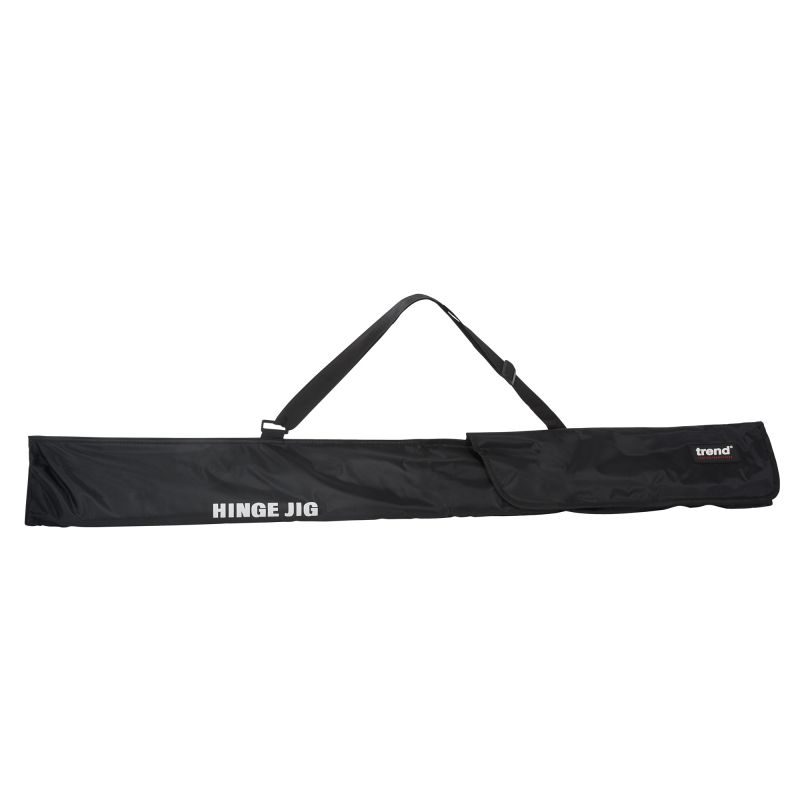

  • 1 x Carry case
