Trend ECL/JIG Euro Cylinder Lock Barrel Jig

Product Ref:
TREECLJIG
Trend
Special
      Click & Collect in Store
    In Our Stock
    Ready For Despatch
ONLY £94.95 INC
£79.13 EXC
Order within 2 Days 18h 0m for next working day delivery on Tuesday 25th February
LOGIN TO ADD FAVOURITES
£1.25 LOYALTY POINTS
Trend ECL/JIG Euro Cylinder Lock Barrel Jig
Product Ref:
TREECLJIG
Trend
    In Our Stock
    Ready For Despatch
ONLY £94.95 INC
£79.13 EXC
Order within 2 Days 18h 0m for next working day delivery on Tuesday 25th February
£94.95
INC
Features & Specification

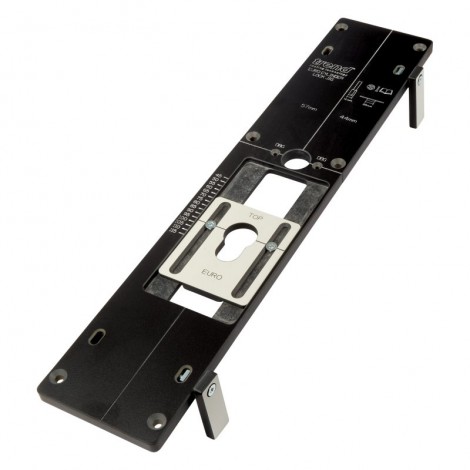

Trend ECL/JIG Euro Cylinder Lock Barrel Jig

Routing jig to cut hole for Euro Cylinder Lock barrels.

  • Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm.
  • Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm.
  • 44mm and 57mm backset.
  • Jig is designed to give a 1mm clearance around the barrel.
  • Allows 16mm diameter hole for handle spindle to be routed.
  • Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres.
  • Made from 12mm thick High Pressure Laminate for longer life.
  • Long rotating edge stops for use with 44mm doors with leading edge.
  • Reversible design.
  • Includes spacer pack to allow for slightly deeper backset
  • Accessory sliding plates available for small oval and large oval cylinder locks.

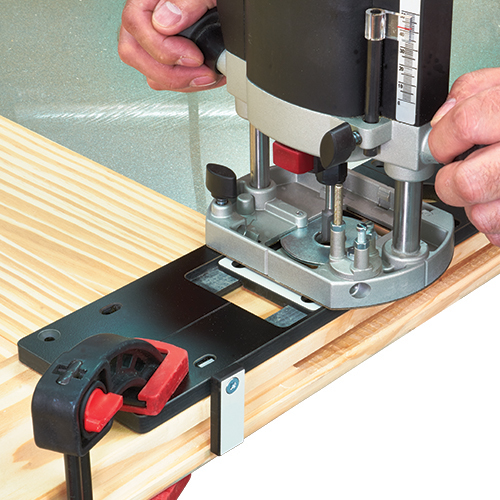

  • Requires plunge router, 12mm diameter cutter and 20mm diameter guide bush.

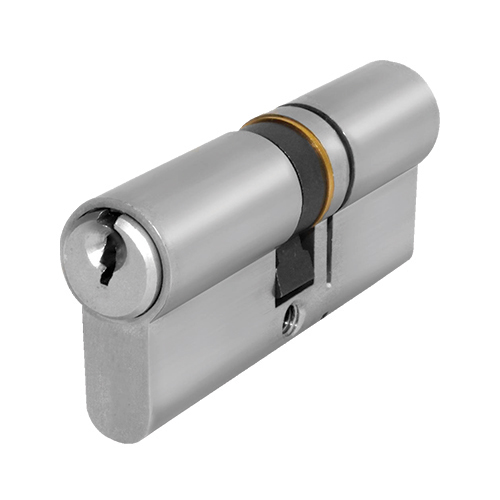

  • Cylinder not included.


Dimensions:

  • Barrel size=33 mm x 17/10 mm
  • Finished hole size=35mm x 19/12 mm
  • Backset=44 mm & 57 mm
  • Handle spindle hole=16 mm
  • Size=490 mm x 101 mm

Includes:

  • 1 x Template with sliding aperture
  • 2 x Edge guides
  • 1 x Spacer pack
