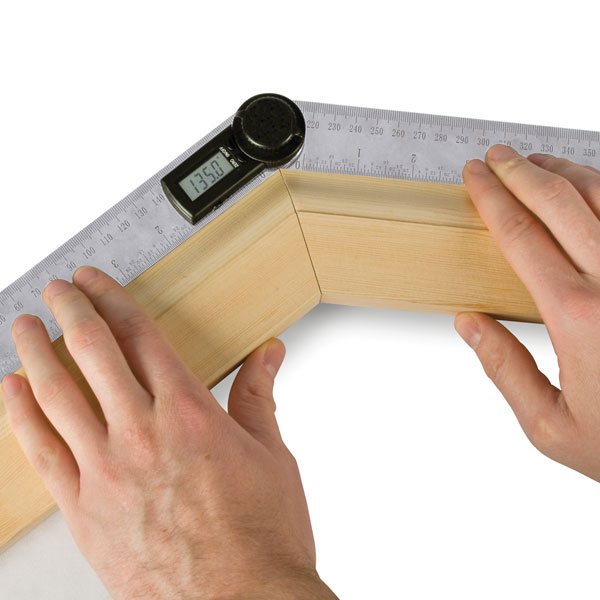

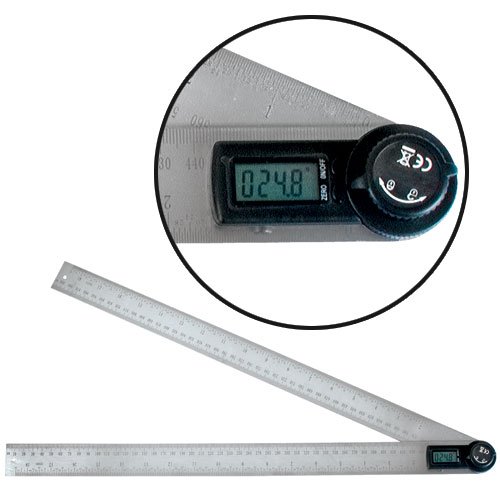

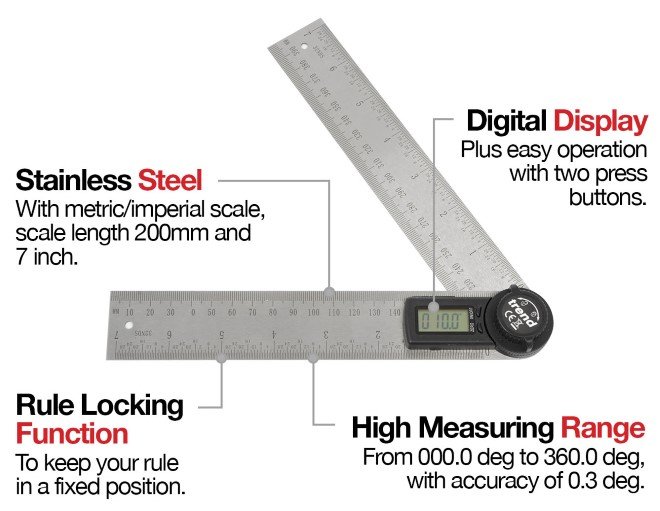

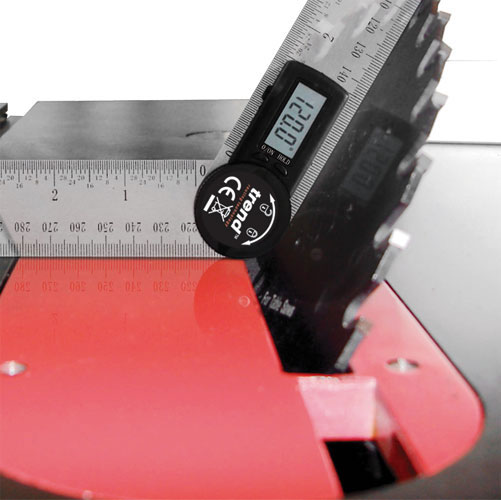

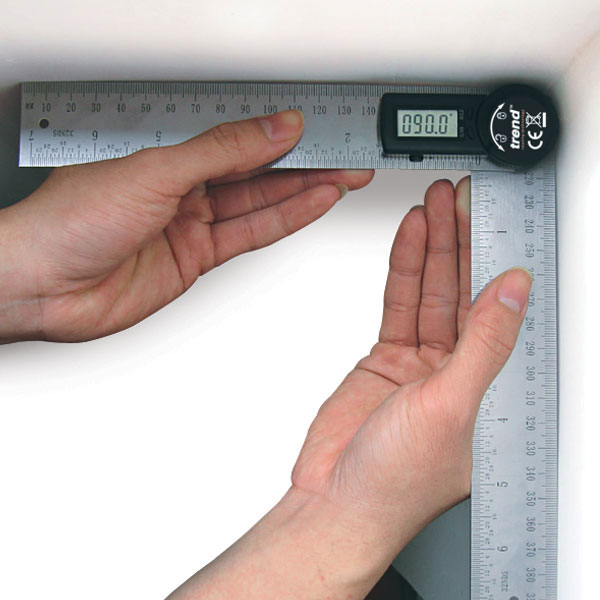

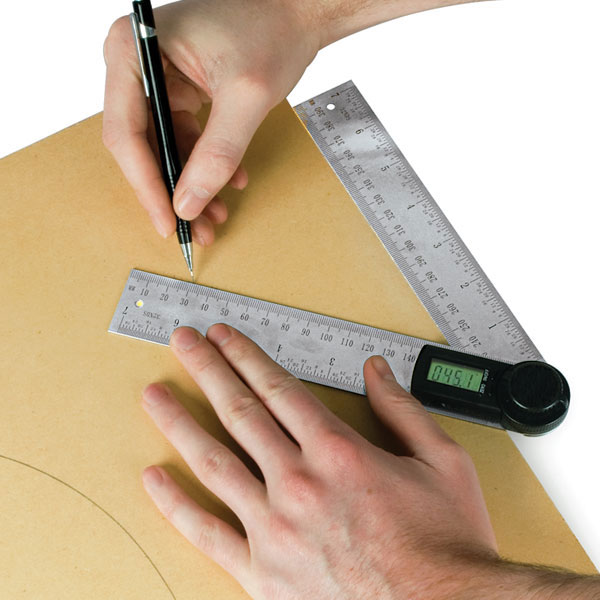

Trend DAR/500 Digital Angle Rule 500mm

Product Ref:

TREDAR500

SAVE £16.00

Click & Collect in Store

In Our Stock
Ready For Despatch

Was £47.99 inc

NOW £31.99 INC

£26.66 EXC

Order within 23h 38m for next working day delivery on Monday 25th November

£0.45 LOYALTY POINTS

Trend DAR/500 Digital Angle Rule 500mm

Product Ref:

TREDAR500

In Our Stock
Ready For Despatch

Was £47.99 inc

NOW £31.99 INC

£26.66 EXC

Order within 23h 38m for next working day delivery on Monday 25th November

Features & Specification

Trend DAR/500 Digital Angle Rule 500mm

Two part adjustable block portable template set designed for recessing hinges in wooden doors & frames with a router.
It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Fully adjustable apertures for fire door requirements and renovation work.
Idea for fitting a new door in an old frame.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Can be used on both inside and outside doors.
Use with a light duty plunge router with 1/4 inch collet.
Long reach router cutter required, 12mm diameter with 70mm overall length.
Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
Unibase may be needed.
Patent No. GB2490139
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Dimensions:

Hinge sizes possible

Length min.=2 5/8" (67 mm)
Length max.=5" (127 mm)
Width min.=1/2" (12.7 mm)
Width max.=1 3/8" (35 mm)
Width max. in 35mm rebate=23 mm
Width max. in 44mm rebate=32 mm

Door sizes possible

Height min.=6' 5" (1956 mm)
Height max.=2100 mm* (6' 10"*)
Thickness min.=5/8" (16 mm)
Thickness max.=2" (51 mm)
Weight= 2.9 kg
Jig overall length=1956 mm

* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
