A range of tungsten carbide tipped blades for cross-cutting wood and wood-based materials using Mitre and Radial Arm saws. Ideal for timber skirting boards, architraves, floorboards, window boards, cladding and decking.
Alternate top bevel (ATB) tooth form with negative hook prevents self-feeding for a safe, controlled cutting action, while delivering a precise, clean cut.
Microgranular tungsten carbide tips (TCT) for optimum edge retention.
Precision ground alloy steel plate to maintain flatness.
Body hardened and tempered to minimise deflection under load.
Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
Etched blade information to EN847 safety standard.
Reamed bore ensures precise spindle fit.

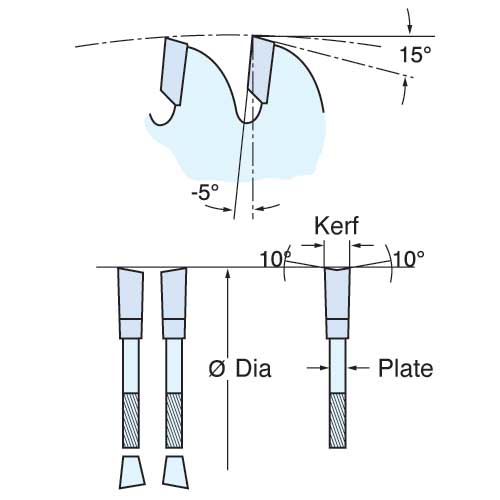

Dimensions:
D=12 inches
D=305 mm
Bore=30 mm
Kerf=3.0 mm
Plate thick=2.0 mm
No. of Teeth=64
Tooth form=ATB
Hook=Neg 5 degrees
Quick Selector No.=C30
Colour Code=White Orange
Type=Mitre Saw Crosscutting
Cut Finish=Medium/fine
Max rpm=6000
Diameter Imperial: 12
Diameter Metric: 305
