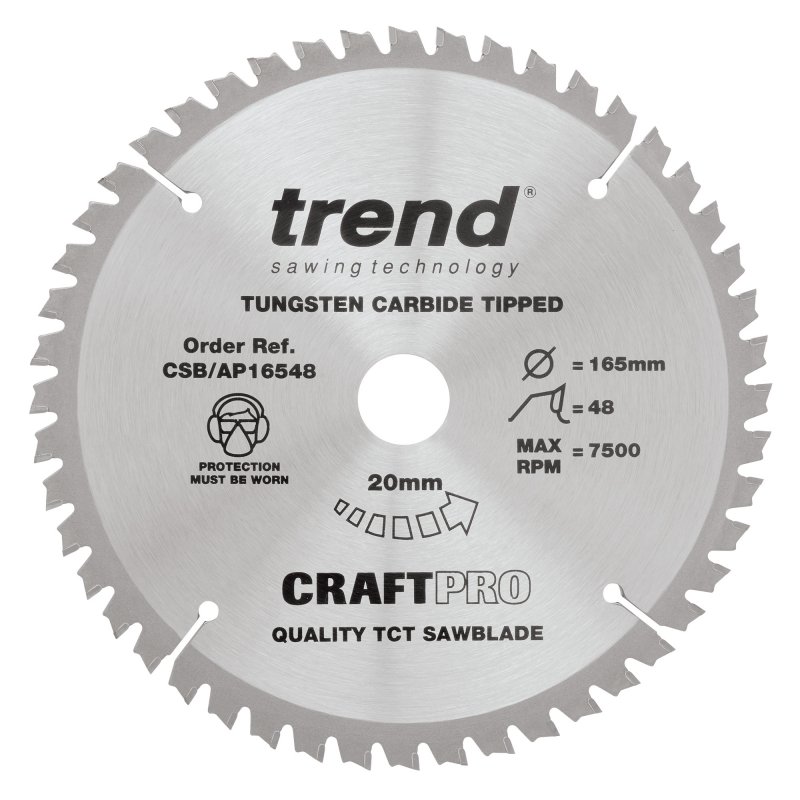

A range of tungsten carbide tipped saw blades for cutting Plastic, Aluminium, Copper and other non-ferrous metals and alloys. For use in circular, plunge, table and mitre saws, Trend Aluminium & Plastic blades deliver accurate, safe cutting performance. Ideal for window & door extrusions, facias & soffits, checker plate, sheet material.
Triple chip ground (TCG) tooth form with -6¡ hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
High tooth count reduces feed and cutting speed for a clean, controlled cut.
Microgranular tungsten carbide tips (TCT) for optimum edge retention.
Precision ground alloy steel plate to maintain flatness.
Body hardened and tempered to minimise deflection under load.
Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
Etched blade information to EN847 safety standard.
Reamed bore ensures precise spindle fit.
NOTE: Requires a wax lubricant when cutting Aluminium, such as Trend TRENDIWAX.
Dimensions:
D=6 1/2 inches
D=165 mm
Bore=20 mm
Kerf=2 mm
Plate thick=1.8 mm
No. of Teeth=48
Tooth form=TCP
Hook=Neg 6 degrees
Quick Selector No.=8B.1
Colour Code=Grey
Type=Aluminium/Plastic/Worktop
Cut Finish=Extra fine
Max rpm=7500
DeWalt DWS520, Makita SP6000, Bosch GKT 55 GC, Triton TTS1400, Draper PS1200D, Titan TTB673CSW, Parkside PTSS 1200 B1, Macallister LT63006S, Macallister MSPS1200
Diameter Imperial: 6 1/2
Diameter Metric: 165
