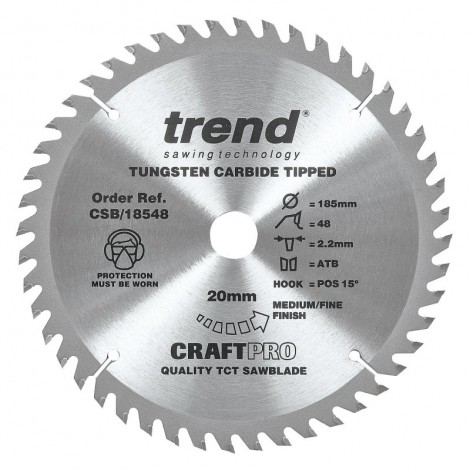

A range of thin kerf tungsten carbide tipped blades for wood and wood-based materials. For use in cordless circular, plunge and table saws, and available in a range of finishes. Ideal for ripping and trimming softwood, hardwood, plywood, MDF and hardboard.
Alternate top bevel (ATB) tooth form delivers a clean, safe and efficient cutting action in hand-held circular and table saws.
Microgranular tungsten carbide tips (TCT) for optimum edge retention.
Thin kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
Precision ground alloy steel plate to maintain flatness.
Body hardened and tempered to minimise deflection under load.
Anti-kickback shoulders* limit feed-speeds to minimise kickback (low tooth count blades only).
Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
Etched blade information to EN847 safety standard.
Reamed bore ensures precise spindle fit.
Dimensions:
D=7 1/4 inches
D=185 mm
Bore=20 mm
Kerf=2.2 mm
Plate thick=1.63 mm
No. of Teeth=48
Tooth form=ATB
Hook=15 degrees
Quick Selector No.=12A
Colour Code=Orange
Type=Trimming/Crosscut
Cut Finish=Medium/fine
Max rpm=8000
Erbauer ERB690CSW, Triton TTS185
Diameter Imperial: 7 1/4
Diameter Metric: 184
