SawStop TSA-SMG-I Scale Mitre Gauge

Product Ref:
SSPTSASMGI
Saw Stop
      Click & Collect in Store
    In Our Stock
    Ready For Despatch
ONLY £199.00 INC
£165.83 EXC
Order within 2 Days 10h 26m for next working day delivery on Tuesday 21st January
LOGIN TO ADD FAVOURITES
SawStop TSA-SMG-I Scale Mitre Gauge
Product Ref:
SSPTSASMGI
Saw Stop
    In Our Stock
    Ready For Despatch
ONLY £199.00 INC
£165.83 EXC
Order within 2 Days 10h 26m for next working day delivery on Tuesday 21st January
£199.00
INC
Features & Specification

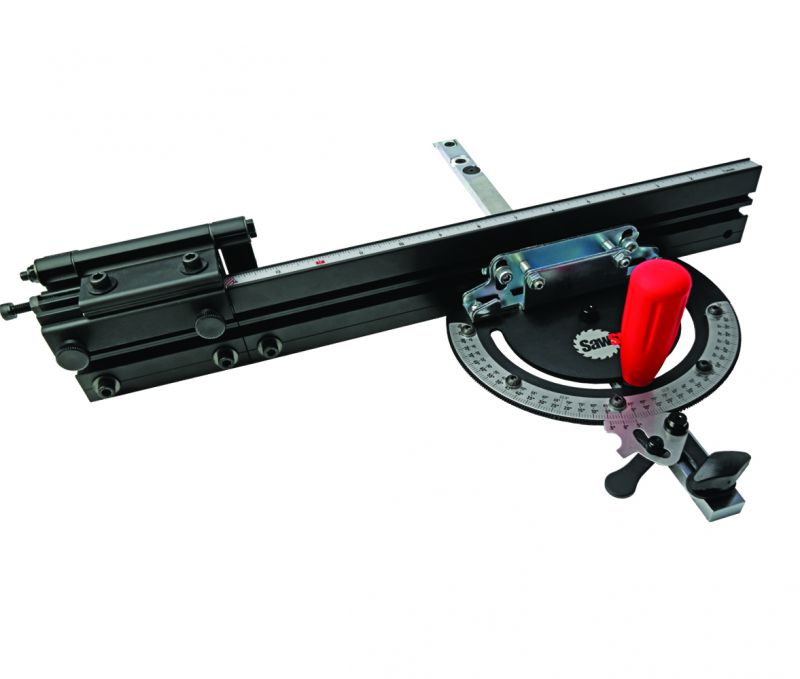

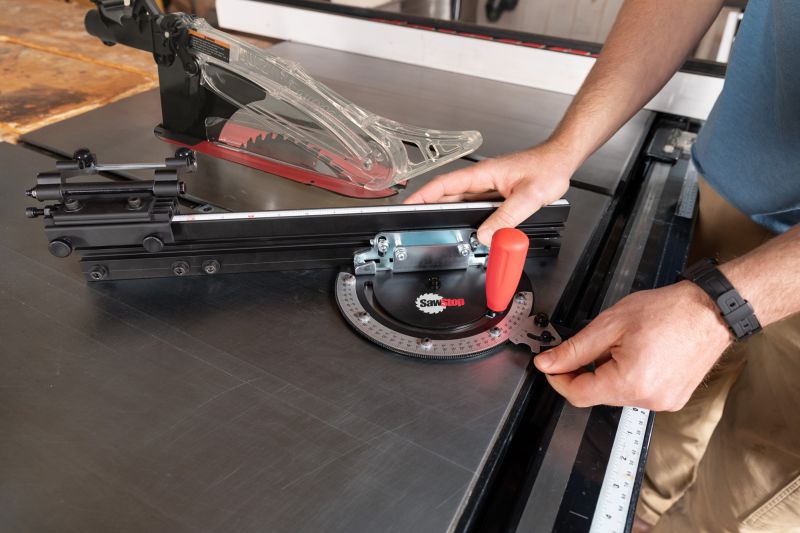

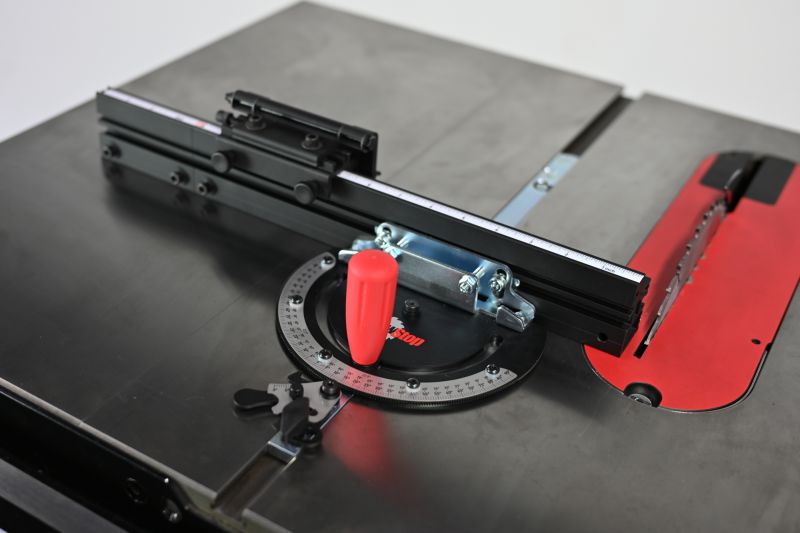

SawStop TSA-SMG-I Scale Mitre Gauge

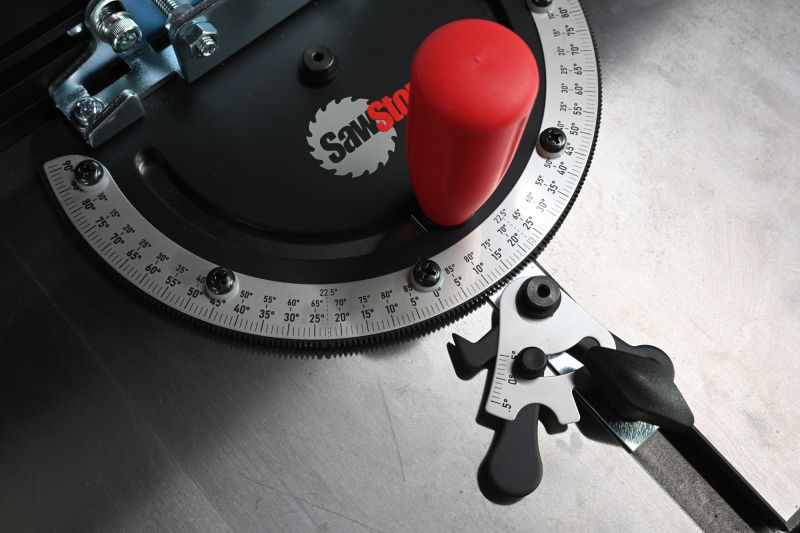

  • The precision protractor head features a pointer and 90 notches in 1° increments each side of 0°, including one for 22.5° on each side. In addition, the built-in Vernier scale gives you the ability to fine-tune any angle in 1/10° increments.
  • An 457.2mm (18”)-long miter bar, made to fit in common 9.52mm (3/8”) x 19.05mm (3/4”) miter slots, uses six adjustable washers to eliminate side-to-side wiggle in the miter slot while ensuring a smooth glide forward and back. A screw-on T-clip at the front of the bar holds the bar level in the miter slot when you pull the head off the table.

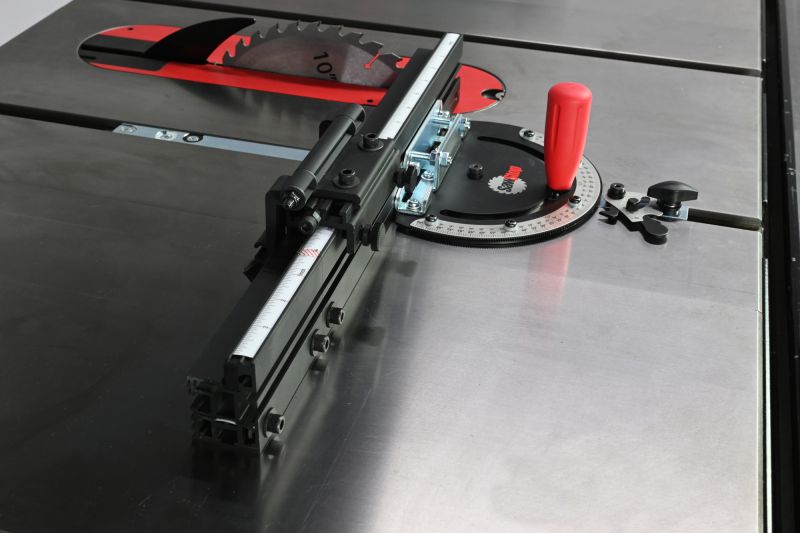

  • The aluminum fence provides a larger reference for holding workpieces accurately (compared to the head alone), with a telescoping extension that reaches up to 800.1mm (31-1/2”), 863.6mm (34”) with the flip stop). A T-slot in the front face provides a place to attach auxiliary wood fences with T-bolts. The scale on top of the fence can be calibrated to enable making precise crosscuts without having to measure and mark your boards.

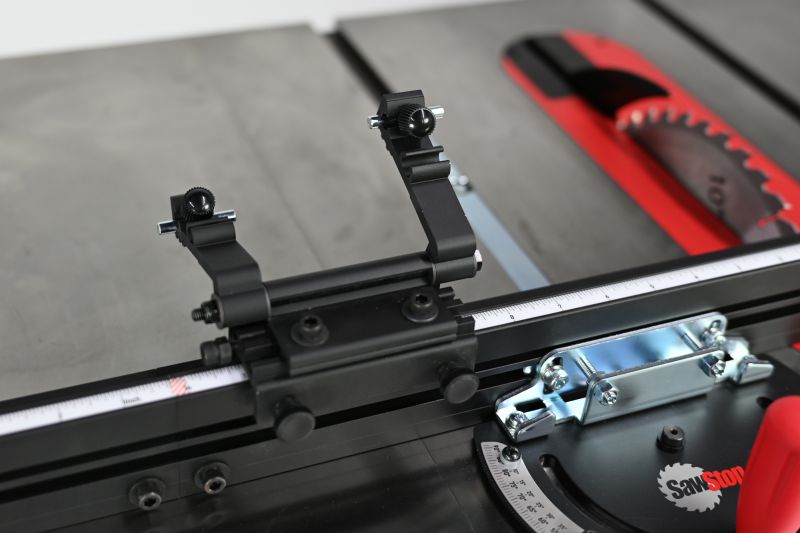

  • Use the flip stop to make repeated cuts at the same setting for identical project parts. The flip stop indexes on the fence with a tooth-and-notch system that lets you position it in 0.79mm (1/32”) increments. The flip stop’s dual arms can be set independently at different lengths from the blade or linked together with a rod, all of which can be fine-tuned with a built-in micro-adjuster.

Specifications

  • Angle range:90° left to 90° right
  • Miter bar dimensions:9.52mm x 19.05mm x 457.2mm (3/8” x 3/4” x 18”)
  • Fence height:60.325mm (2-3/8”)
  • Miter slots:T-shaped – 19.05mm (3/4″) at top, 25.4mm (1″) at bottom, 0.37mm (3/8″) deep
  • Angle detents:181
  • Fence length:463.55mm (18-1/4” retracted), 800.1mm (31-1/2” fully extended)
  • Weight:2.81kgs (6.2 lbs)

Supplied with:

  • Miter gauge with extendable fence (preassembled)
  • Dual flip stop
  • Reverse ruler for main fence
  • Reverse ruler for fence extension

Parts bag containing:

  • Grip
  • T-clip with screw (use with T profile miter gauge slot)
  • 3mm hex wrench
  • 5mm hex wrench
  • (2) 38mm steel rods

Spare parts bag containing:

  • (2) 12mm hex head screws w.
  • (2) washers
  • (2) rectangular nuts
  • (3) Miter bar expansion discs
  • (3) Miter bar fixed discs
  • (3) Hex head screws for use with expansion or fixed discs
