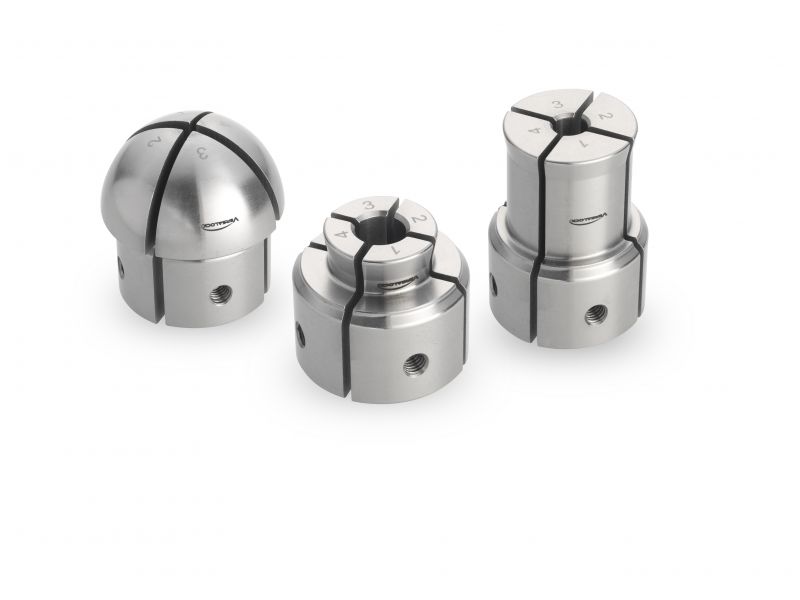

Record Power VersaLock Insert Package - 62696,62697 & 62698

Record Power VersaLock Insert Package - 62696,62697 & 62698

Record Power 62696​ VersaLock 35mm Long Jaw Insert

Ideal for smaller spigots and recesses, these jaws are incredibly versatile. The length of the jaws offers increased holding power on spigots and gives good access to the rear of workpieces when used in expansion mode. The 10 mm central bore is designed for holding small spigots, making them the ideal jaws for turning drawer handles, finials and other similar-sized projects.

• Expansion: 33 - 53 mm
• Contraction spigot: 7 - 27 mm
• Contraction square: 6 – 19 mm

Record Power VersaLock 28mm Jaw Insert

These jaws are ideal for use with small workpieces, such as miniature boxes and the 13 mm central bore gives excellent support for small spigots such as those needed for decorative finials and similar projects.

• Expansion: 25 -45 mm
• Contraction spigot: 10 - 30 mm
• Contraction square: 7 - 21 mm

Record Power VersaLock Zero Dome Jaw Insert

These jaws are specifically designed to hold the smallest, most fragile work pieces, allowing you to get very close to support thin work as safely as possible. They also allow good access to work close to the base of a work piece without the tool fouling on the jaws. For maximum support always ensure the workpiece features a spigot long enough to be supported along the full length of the jaws’ internal surfaces.

• Contraction spigot: 0 - 18 mm
• Contraction square: 0 -12 mm

VersaLock Modular Jaw System: Revolutionising Woodturning with Speed, Safety and Versatility

• The VersaLock modular jaw system is the latest innovation in woodturning technology from Record Power, offering a groundbreaking approach to chuck jaws that combines speed, safety and unmatched versatility. Protected by patent GB 2608602 with patents pending in Europe, USA and China, VersaLock sets a new standard in woodturning by allowing quick and secure jaw changes without the hassle of lost screws. Whether you're an experienced woodturner or just starting out, VersaLock transforms your workflow, letting you focus on creating with precision and confidence.
• Our First VersaLock jaw system, comprising 50 mm modular base jaws and 3 sets of inserts, is designed to offer the benefits of the most used jaws on a chuck whilst also providing many of the functions of a mini chuck.
• The system will be expanded in the future with an even wider range of applications possible from additional VersaLock base jaws and inserts so that most applications can be quickly and safely accomplished with just a handful of base jaws.

Quick-Change Technology
Change jaws in seconds without completely removing screws. Just slide, lock and go!

Enhanced Safety
Unique dovetail and screw-slot design securely holds the jaws, reducing the risk of ejection during operation. VersaLock ensures a secure fit.

Unmatched Versatility
From fine detail work to handling larger workpieces, the VersaLock system adapts effortlessly. Choose from a range of insert jaws to suit a wide array of projects.

Built to Last
Precision-engineered from high-quality materials with upgraded Torx screws for durability. VersaLock is designed for professional-grade performance.

Complete System Compatibility
The Victory Chuck comes pre-fitted with the VersaLock base jaw, offering you a complete premium woodturning solution.


How It Works
The VersaLock system uses a modular approach with a unique sliding screw mechanism. The base jaw features slots that allow the insert jaw to slide into place. Once the insert jaw is positioned, simply tighten the captive screw to secure it. This design prevents lost screws and enables jaw changes while the chuck is still mounted on the lathe.

Why Choose VersaLock?

• Efficiency: Streamline your workflow with fast, easy jaw swaps.
• Safety: Work confidently, knowing your jaws are securely locked in place.
• Flexibility: Adapt quickly to a wide range of projects with a modular system that grows with your needs.

Optional Inserts Available
