Leica NA320 (Machine only) Optical Level 20x Magnification

Product Ref:

LECNA320

Click & Collect in Store

Typically available
in 2 - 5 Days

ONLY £183.95 INC

£153.29 EXC

£3.07 LOYALTY POINTS

Leica NA320 (Machine only) Optical Level 20x Magnification

Product Ref:

LECNA320

ONLY £183.95 INC

£153.29 EXC

Features & Specification

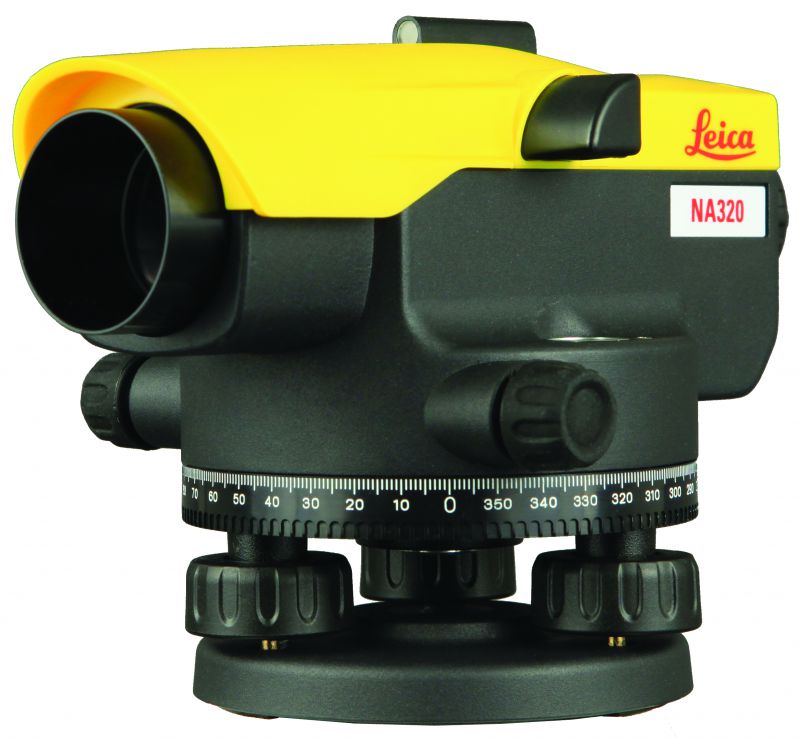

Leica NA320 (Machine only) Optical Level 20x Magnification

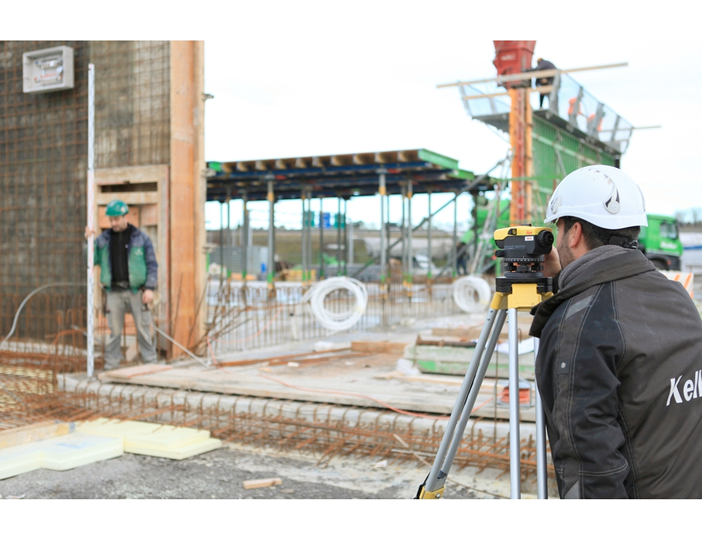

Professionals face many obstructions on site. Whatever the levelling challenge, Leica NA300 Series levels overcome. Rely on the known expertise of Leica Geosystems for the best quality and performance. On your terms, on your site, Leica Geosystems and the Leica NA300 Series are your trusted partners for accurate measurements every time.

UNIQUE. ACCURATE. SIMPLE.

Distinctive design and proven technology, inside and out
Leica Geosystems understands construction and provides levels for all needs
Protected shape for increased ergonomic handling while ensuring the highest quality results
Simple handling for quick and accurate measurements

KEY BENEFITS

Quick and easy measurements
Unique design and highest quality of results for levelling needs
Manufactured for the most rugged sites and the harshest conditions
Expert knowledge of Leica Geosystems with more than 270 service centres worldwide
Unbeaten service offering

Specifications:

Standard deviation for 1 km double levelling (ISO17123-2): 2.5 mm

TELESCOPE

Magnification 20 x
Objective aperture 36 mm
Shortest target distance from instr. axis <1.0 m
Field of view at 100 m <2.1 m
Multiplication factor 100
Additive constant 0

COMPENSATOR

Working range ± 15’
Setting accuracy (standard deviation) <0.5’’
Sensitivity 8’/2 mm

HORIZONTAL CIRCLE

Graduation 360°
Graduation interval 1°
Weight (net) 1.5 kg
Operating temperature range –20° C to +40° C
Protection IP54
