Leica Lino L2Plus Self Levelling Line Laser 30 Meter with Adjustable Wall/Magnetic Bracket
*********SPECIAL LIMITED EDITION VERSION********
Suppied with Fine adjustment wall bracket with magnetic bracket for ceiling fixers
The time-consuming and tedious drawing of lines on the wall is a thing of the past. The Leica Lino L2+ ™ projects them exactly, quickly and easily - allowing you to concentrate on the job in hand. The improved emergence angle of 180° both horizontally and vertically allows the Lino L2+ to project longer lines with outstanding visibility.
- NEW! Projects long lines with excellent visibility
- NEW! Emergence angle of 180°
- NEW! Pulse function with power-saving mode
- Self-levelling range 4° ± 0.5°
- Exact 90° angle
- Range up to 15m* >30m with detector
- Levelling accuracy ± 1.5mm @ 5m
- Modern, ergonomic housing
- Robust spray proof / dust protected IP54
- Very easy to use
* Depending on lighting conditions
Self-levelling
The instrument is set up quickly and effortlessly to project horizontal or vertical lines. Minor angular mis-alignments of ± 4° are compensated automatically. If the tilt is outside these limits, the device does not project any lines and errors are therefore prevented.
Extra long laser lines
The improved emergence angle ensures outstanding visibility and extension of the laser line for perfect levelling and alignment at long distances. It is possible, e.g., to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.
Working in bright conditions
The pulse function is not just an energy-saving mode: it also allows you to locate the laser lines using a laser detector, even in very bright lighting conditions. A series of acoustic signals from the detector indicates the precise position of the laser beam plane.
Lock function
You can manually switch off the self-levelling features using the lock function. The laser line can then be projected at any angle. The lock function also serves as transport protection.

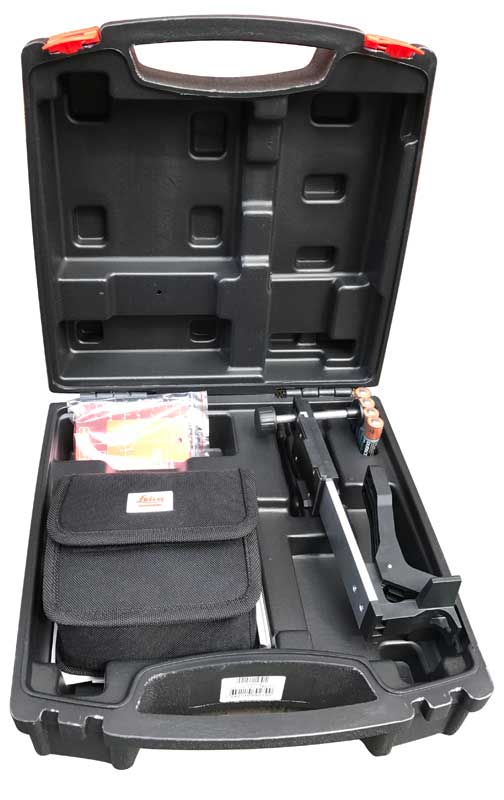

Supplied with:
-
Hard Leica case
-
Fine adjustment wall bracket with magnetic bracket for ceiling fixers
-
Target plate
-
Alkaline batteries (type AA, 4 × 1.5V)
-
Pouch
-
Magnetic multifunction adapter
Specifications:
-
Range up to 15 m depending on lighting conditions
-
Range with detector > 30 m
-
Levelling accuracy @ 5 m ± 1.0 mm
-
Self-levelling range 4° ± 0.5°
-
Accuracy of horizontal line @ 5 m ± 1.5 mm
-
Vertical accuracy @ 3 m line length ± 0.75 mm
-
Beam divergence < 180°
-
Laser type 635 nm, laser class II
-
Batteries type AA 4 × 1.5 V
-
Protection class splash water/ dust proof IP54
-
Operating temperature -10 °C to 40 °C
-
Storage temperature -25 °C to 70 °C
-
Dimensions (H × D × W) 117.8 × 130.7 × 75.4 mm
-
Weight without batteries 370 g
-
Tripod thread ¼”
