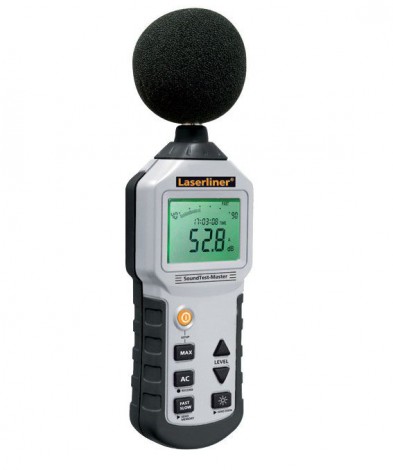

Laserliner Sound Test Meter
Noise level measuring instrument with integrated long-term storage
– Measurement of noise levels with frequency weighting filter according to dB (A) and dB (C) standard curves
– Selectable time weighting factors (fast 125 ms/slow 1 s) for optimum adaptation to noise dynamics
– Long-term recording function with 16000 storage points or real-time logging on PC
– Selectable analogue indicator for visual assessment
– Calibrated and adjusted by means of standard 94 dB/1 kHz noise level calibrator
– Sensitive electret condenser microphone with detachable wind guard
– Analogue outputs: DC and AC
– PC software
– Illuminated, clearly arranged display
Specifications
- NOISE LEVEL 30 ... 130dB(A):
- Resolution 0.1%, accuracy ±1.5 dB 35 ... 130dB(C):
- Resolution 0.1%, accuracy ±1.5 dB
- Frequency range: 31.5Hz ... 8000 Hz
- Dynamic range: 50dB
- Test condition: 94 dB, 1 kHz sine signal
-
MEASURING RANGES
30dB … 80dB
40dB … 90dB
50dB … 100dB
60dB … 110dB
70dB … 120dB
80dB … 130dB
-
VOLTAGE OUTPUT AC: 0.707 Vrms at full deflection approx. 600 ohm output impedance
DC: 10 mV/dB approx. 100 ohm output impedance
- DATA MEMORY 16000 measuring points
- INTERFACE Opto-insulated RS232
- POWER SUPPLY 6 x 1.5V AAA alkali, (LR03)
- DC-ADAPTER 9V DC, < 100 mV ripple > 100 mA current consumption
- DIMENSIONS 245 x 80 x 35mm
-
WEIGHT 0,35 kg
Supplied with:
-
SoundTest-Master
-
Carrying Case
-
Batteries
