Kreg Deck Jig System 20 Kit

• The Kreg Deck Jig helps you get the deck you want, without any unsightly exposed nails or screws
• Concealed-fastener system for installing deck boards
• Easy-grip handle gives you a secure hold and complete control over each and every joint
• Hardened-steel guides keep the stepped drill bit and driver bit at the precise, optimal angle
• Three lifetime-warranted, hardened-steel drill guides let you install deck boards in a variety of hard-to-reach areas
• Handy spacer rings ensure accurate deck board spacing for proper drainage and longer deck life

Create a better, more beautiful deck

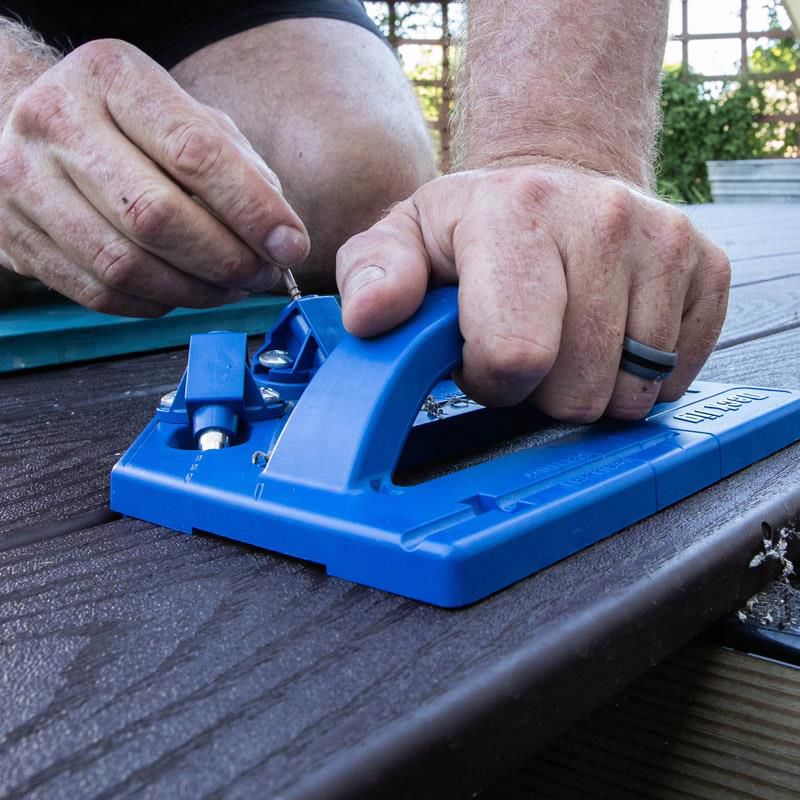

Create a better, more-beautiful deck with the Kreg® Deck Jig™. This concealed-fastening system works together with Kreg Deck Screws to allow you to install decking without visible fasteners, so all you see is the beauty of your decking instead of a bunch of screws. The Deck Jig features hardened-steel guides to drill precisely positioned pilot holes, and to guide Deck Screws to attach decking from the edge solidly and invisibly—whether you’re using solid-wood or composite deck boards.

The Deck Jig makes drilling the stepped pilot holes and driving screws easy in all situations thanks to three hardened-steel guides—one at 90° to the board edge, and two at opposing 45° angles—that allow easy access when working near walls, as well as when creating strong joints where boards butt together end to end. The stepped drill bit creates a perfectly positioned pocket hole and clearance hole for the Kreg Deck Screw, while a stop collar ensures prefect drilling depth.

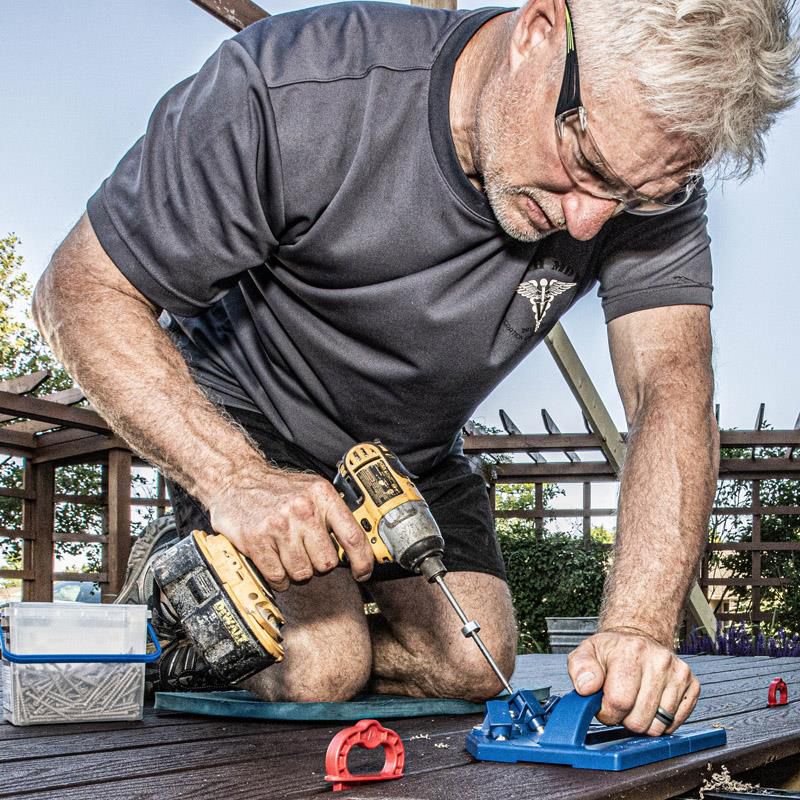

After drilling, just drop a Kreg Deck Screw—an integral part of this concealed-fastening system—into the same guide, and then drive it with the included square-drive driver bit. It’s equipped with a stop collar, too, to ensure that the self-tapping, case-hardened screw gets driven to the perfect depth. The aggressive threads bite securely into the joist, while the smooth upper shank and flat-bottom head work together to pull the deck board tightly in to place.

The Deck Jig Concealed-Fastener System works with composite decking, as well as solid-wood

Features

• Installs concealed deck fasteners
• Three hardened-steel drill guides

Construction

• Impact-resistant polymer, hardened steel

Adjustability

• Adjustable stop collars for 4/4, 5/4, and 2-by decking

Capacity

• 4/4, 5/4 and 2-by (1 1/2"-thick) decking material

Includes

(1) Deck Jig,
(1) Deck Jig Drill Bit,
(1) Deck Jig Driver Bit,
(2) Stop Collars,
(1) Hex Wrench,
(3) ¼" Spacer Rings, Owner's Manual

Warranty: Lifetime drill guide warranty
