Holzstar TF 190 E 4 Speed Spindle Moulder

Product Ref:

HOL5901921

Click & Collect in Store

Direct Delivery
From Manufacturer
Subject to availability

ONLY £2,039.00 INC

£1,699.17 EXC

£33.98 LOYALTY POINTS

Holzstar TF 190 E 4 Speed Spindle Moulder

Product Ref:

HOL5901921

Direct Delivery
From Manufacturer
Subject to availability

ONLY £2,039.00 INC

£1,699.17 EXC

Features & Specification

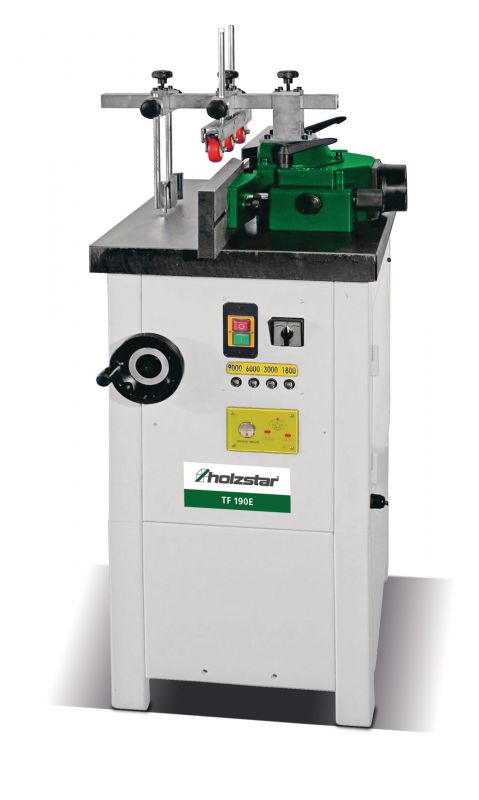

Holzstar TF 190 E 4 Speed Spindle Moulder

(1800-9000 rpm) + LED display + selector switch for L or R spindle roatation + triple pressure roller safety device + optional Sliding Table Carriage (not inc) 2800W motor 230v 16 Amp

Milling stop with finely adjustable aluminum stops
Quick and easy changing of the speed using multiple V-belts
Speed setting displayed by LED lights
Large work surface thanks to the torsion-free grey cast iron table
Selector switch for clockwise/counterclockwise rotation of the milling spindle
Milling unit made of grey cast iron
Hold-down unit for precise workpiece guidance

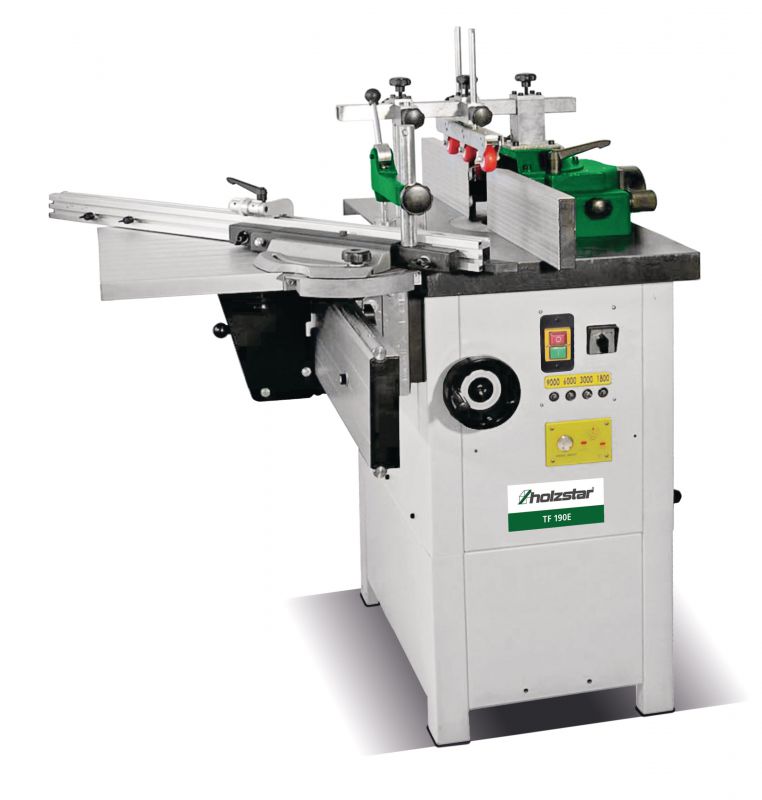

Sliding table and chassis available as an accessory

Specifications

Dimensions and weights

Length approx. 730 mm
Width/depth approx. 500 mm
Height approx. 1200 mm
Weight approx. 140 kg

Electrical Data

Drive motor output 2,2 kW
Absorbed power drive motor 2,8 kW
Supply voltage 230 V
Mains frequency 50 Hz

Extraction port

Extraction port diameter 100 mm

Milling cutter diameter max.

Max. tool diameter lowerable 200 mm

Milling spindle

Usable length 100 mm
Stroke 100 mm
Max. protrusion over the table 100 mm
Speed(s) 1800/3000/6000/9000 min¯¹
Speed regulation Strap
Speed display LED on the machine front
Arbor diameter 30 mm

Work table

Length 690 mm
Width 480 mm
Table height 900 mm

Related Categories

Similar products can be found in these categories:

Machinery >Spindle Moulders > Spindle Moulders

Holzstar > Holzstar Spindle Moulders

Accessories

HOL5911920 Holzstar Sliding Table Carriage For TF 190 E + TF190 SE

Delivered Direct From Manufacturer Subject to availability

£539.00 INC
