Holzstar BSM-H 16 Drilling & Mortising Machine

Product Ref:
HOL5906116
Holzstar
Special
      Click & Collect in Store
Direct Delivery
From Manufacturer
Subject to availability
ONLY £399.00 INC
£332.50 EXC
LOGIN TO ADD FAVOURITES
£6.65 LOYALTY POINTS
Holzstar BSM-H 16 Drilling & Mortising Machine
Product Ref:
HOL5906116
Holzstar
Direct Delivery
From Manufacturer
Subject to availability
ONLY £399.00 INC
£332.50 EXC
£399.00
INC
Features & Specification

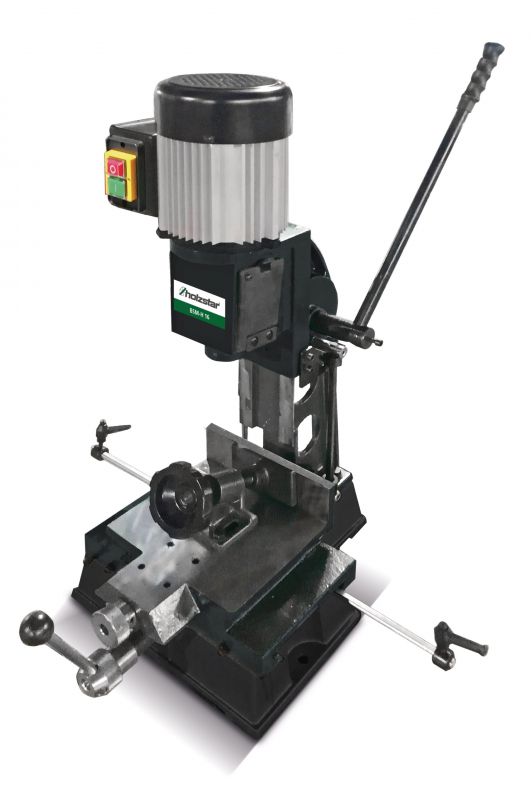

Holzstar BSM-H 16 Drilling & Mortising Machine

  • For easy production of slot-pin connections
  • Solid cast construction of the machine frame with precise dovetail guides in each axis
  • Long lever for quill stroke for chiseling out with little effort
  • Movable clamping jaws can be mounted in three different positions
  • Two adjustable stops each for X and Y direction
  • The machine head is additionally held with a gas pressure spring for easier handling
  • Tool holder via drill chuck with gear rim

Specifications

Dimensions and weights

  • Length (product) approx. 270mm
  • Width/depth (product) approx. 480mm
  • Height (product) approx. 780mm
  • Net weight approx. 39kg

Work top(s)

  • Work table lenth 180mm
  • Work table width 150mm
  • Table travel X 80mm
  • Table travel Y 65mm

Electrical Data

  • Supply voltage 230V
  • Rating 0.37kW
  • Mains frequency 50Hz

Spindle

  • Max. height of workpiece 110mm
  • Max. depth of workpiece 125mm
  • Max. Chisel stroke 76mm
  • Chisel sizes 6 – 16mm
  • Drill chuck mount B16-13mm
  • Speed 1400min¯¹

Supplied with:

  • 1x gouge 6,35mm (1/4″)
  • 1x gouge 9,5mm (3/8″)
  • 1x gouge 12,7mm (1/2″)
