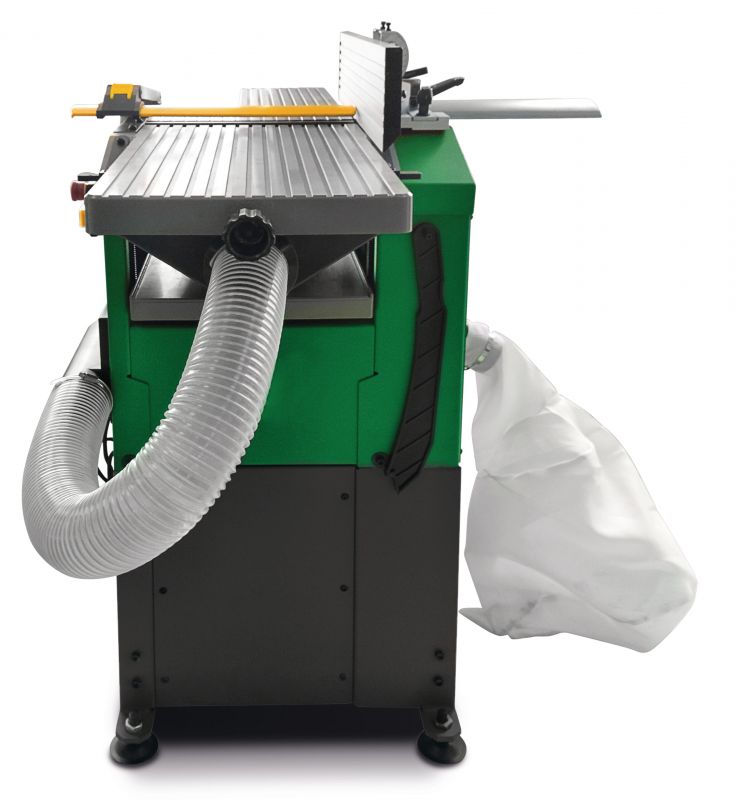

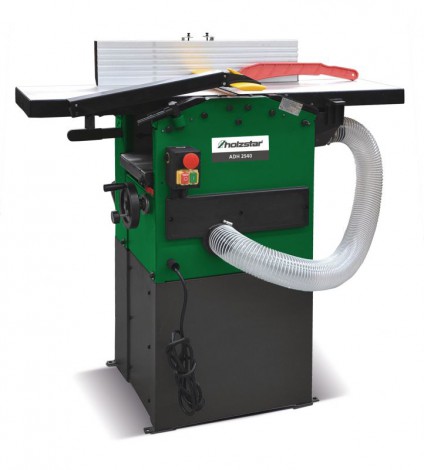

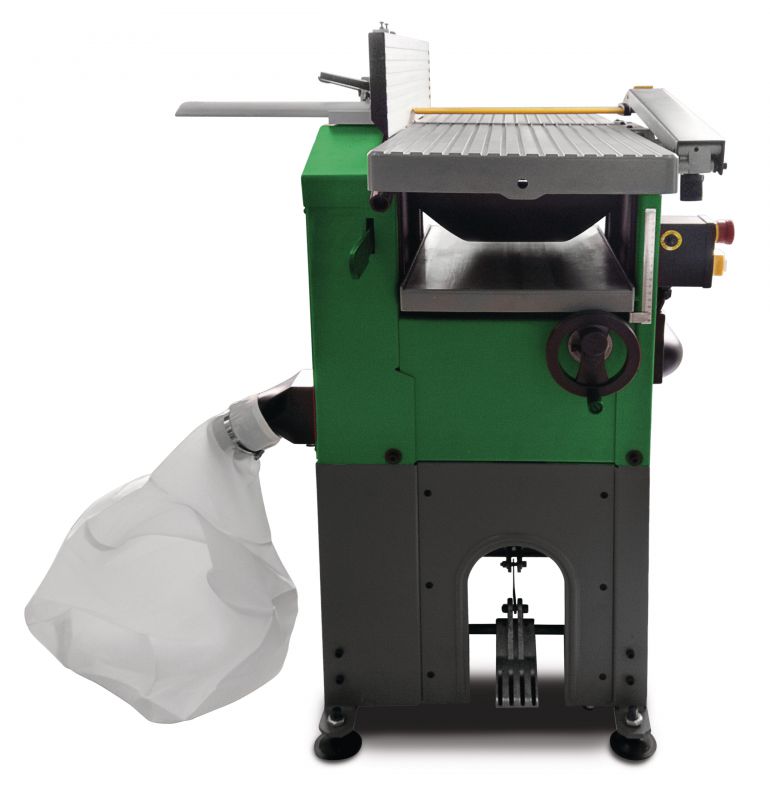

Holzstar ADH 2540 Planer/Thicknesser

Product Ref:

HOL5904125

Click & Collect in Store

Direct Delivery
From Manufacturer
Subject to availability

ONLY £1,289.00 INC

£1,074.17 EXC

£21.48 LOYALTY POINTS

Holzstar ADH 2540 Planer/Thicknesser

Product Ref:

HOL5904125

Direct Delivery
From Manufacturer
Subject to availability

ONLY £1,289.00 INC

£1,074.17 EXC

Features & Specification

Holzstar ADH 2540 Planer/Thicknesser

For angular joining (90°) and precise planing of solid wood boards and moldings
Automatic workpiece feed
Rubberized extraction roller protects the wood surface when planing thick
Suction integrated in the substructure
With chassis as standard
Simple and precise adjustment of the chip removal
Dressing table made of milled cast aluminum
Space-saving compact design

Specifications

Dimensions and weights

Length (product) approx. 1105mm
Width/depth (product) approx. 750mm
Height (product) approx. 1075mm
Net weight approx. 87kg

Jointing

Total length of table 1050mm
Infeed table length 510mm
Infeed table width 260mm
Working height 920mm
Max. cutting depth of joints 3mm
Planing stop length 635mm
Planing stop height 127mm
Planing stop pivoting range 90 – 45°

Extraction port

Suction hood connection diameter 75mm
Suction unit connection diameter 75mm

Footprint

Machine body length 450mm
Machine body width/length 420mm

Thickness

Thicknessing table length 480mm
Thicknessing table width 254mm
Working height min. thickness 6mm
Working height max. thickness 160mm
Working length min. thickness 250mm
Max. cutting depth thickness 2mm

Electrical Data

Duty type drive motor S1
Drive motor output 1,2kW
Absorbed power drive motor 1,8kW
Supply voltage 230V
Mains frequency 50Hz

Noise emission

Sound pressure level Lp 81dB(A)
Sound power level Lw 93dB(A)

Planing knife shaft

Planing shaft type Strip planer blade shaft
Planing shaft diameter 62mm
Number of planing blades 2St
Planing shaft speed 6700min¯¹
Max. planing width 254mm

Feed

Feed speed 8.5m/min

Supplied with:

Suction connection hose, Ø 76 mm, 920 mm
Strip planer knife set
Chip bag
