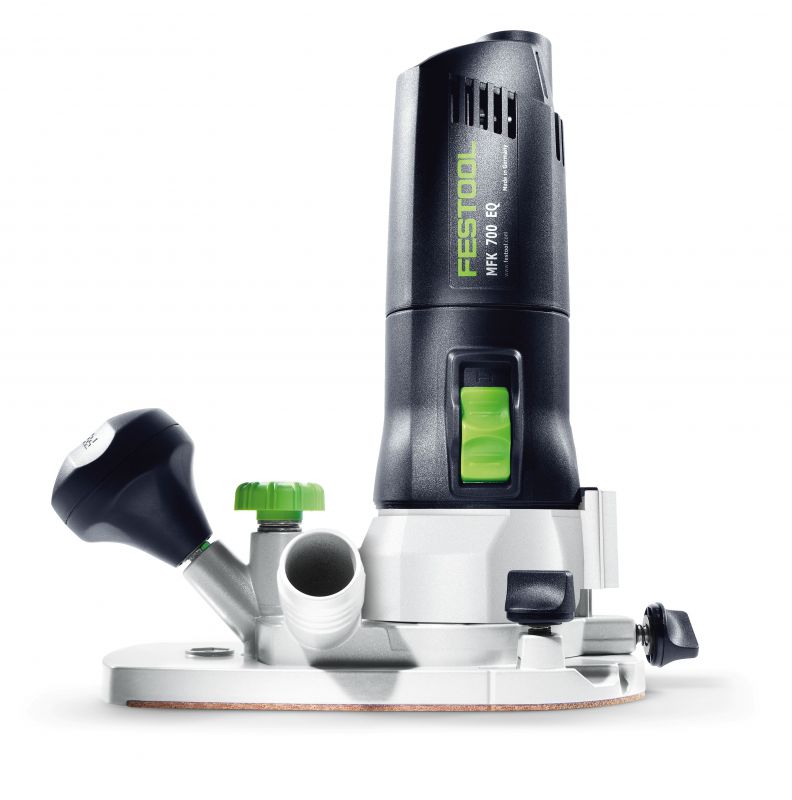

Festool 578060 Module edge router MFK 700 EQ-Set 230V

Festool 578060 Module edge router MFK 700 EQ-Set 230V

Versatile when trimming edges.

Convenient conversion. The modular design makes the MFK 700 a cost-effective all-rounder: Only the router table, and not the entire router, needs to be changed – and it is ideally equipped for all tasks involved in corner and edge trimming. Simply set down the right table and you can immediately route veneers or grooves, round edges, create profiles and much more.

• Wider application spectrum due to interchangeable router tables
• Efficient dust extraction integrated directly on the router base
• 130 mm table support surface for accurate routing results
• Electronic speed adjustment switch for perfect adaptation to the working material
• Motor temperature monitor for a long service life

Suitable for:

• Routing solid wood, acrylic and PVC edge veneer
• Chamfering, rounding and profiling edges
• Grooving with side stop

Achieve ideal results more quickly:

Convenient and safe:

Systems get it done:

The universal interface enables various router table modules to be used for a range of different applications.

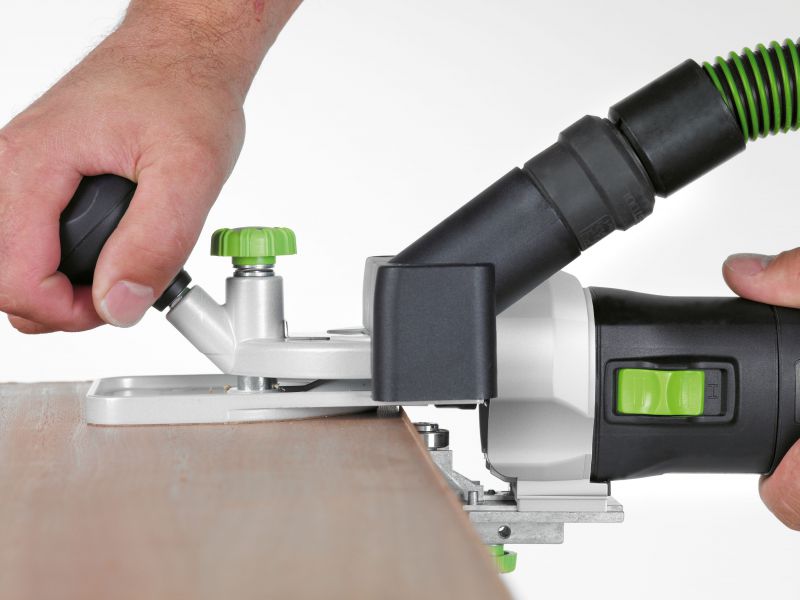

The long router table support with auxiliary handle guarantees safe guidance – without tipping over.

Can be expanded in a number of ways with perfectly matched routers, router tables, collets, parallel side fence and more.

• Precise fine adjustment
• Universal interface
• Moving contact pad
• Surface protection
• Flush routing and rounding
• Side stop with fine setting
• Cutter replacement in seconds
• Clean and healthy work
• Flexible motor design
• Speed control adapted to the material
• For quick device changeover

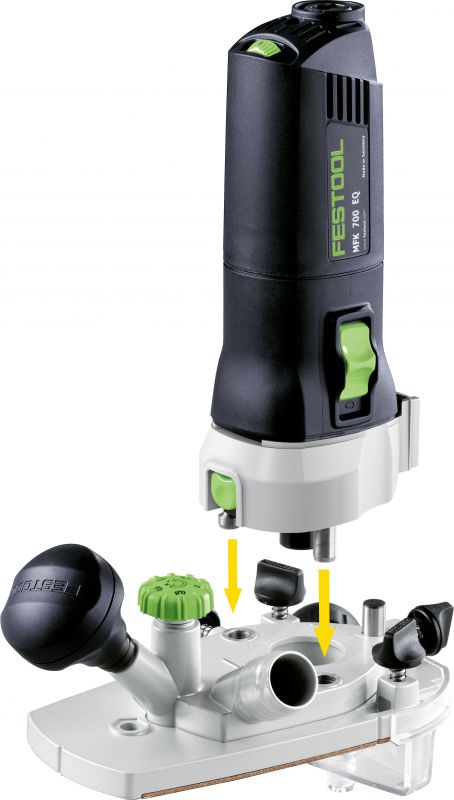

By using the integrated interface, different router table modules can be used without the need for tools.

The MFK 700 has a moving contact pad with an external ball bearing, ensuring streak-free routing results (included in the scope of delivery of the Set versions or available separately).

The bench of the MFK 700 is inclined by 1.5° to protect the surface from damage. The slight inclination of the router tool prevents you from routing into the material surface (included in the scope of delivery for the Set versions or available separately).

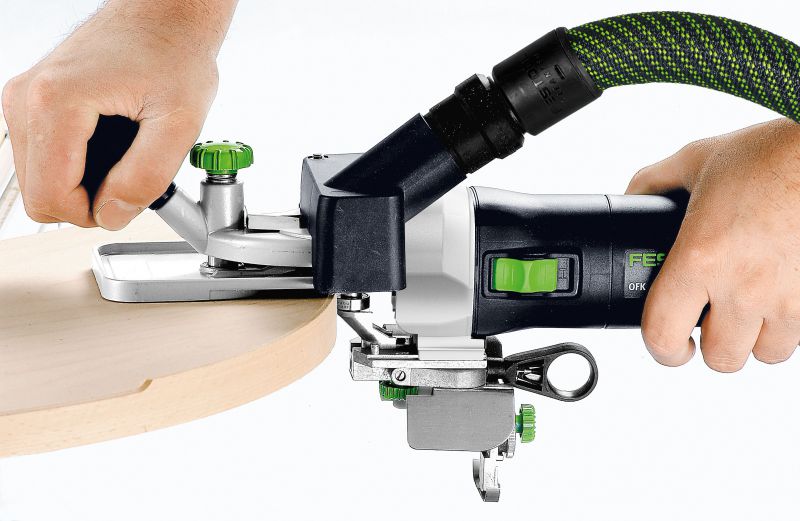

The design of the router table on the MFK 700 incorporates an opening on the support base to accommodate the veneer overhang. Veneer or strips can be routed flush and rounded at the same time using the correct Festool cutter.

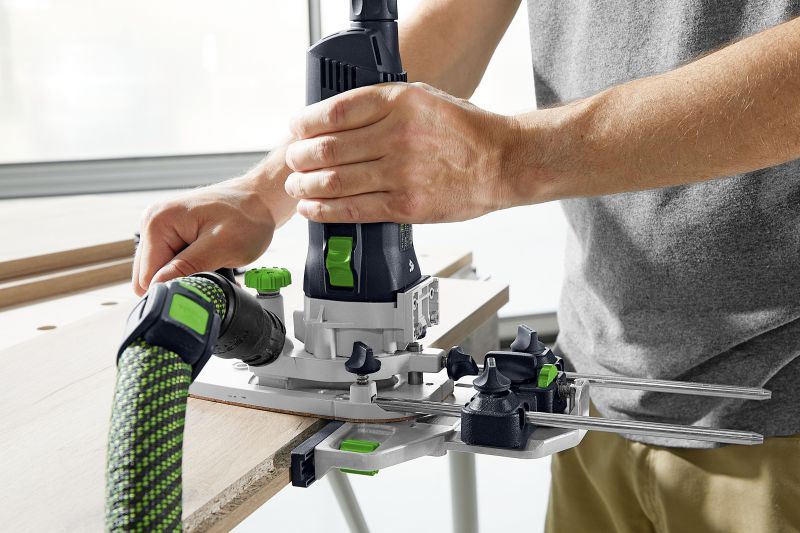

Thanks to the central clamp and the tool-free adjustable guidance jaws, the parallel side fence is ready for use in an instant. The fine adjuster, precise to the millimetre, offers maximum precision when routing.

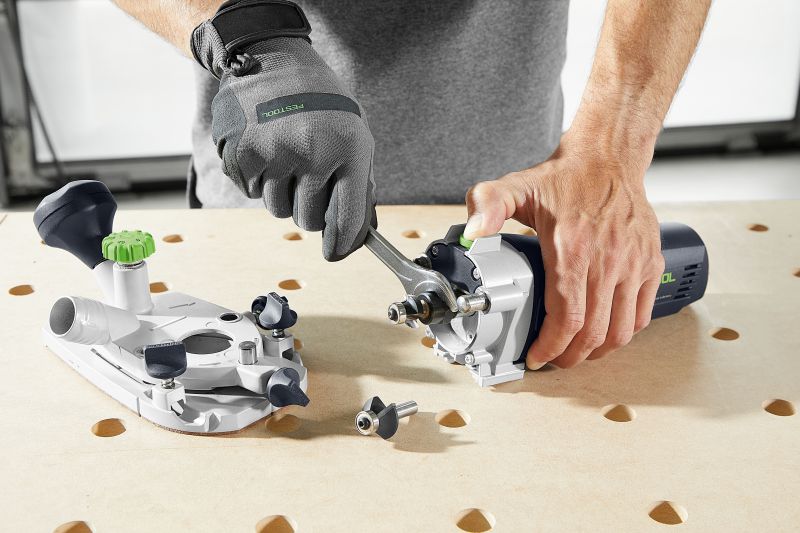

With the MFK 700, cutter replacement is quick and easy. Actuate the spindle stop via the rocker.

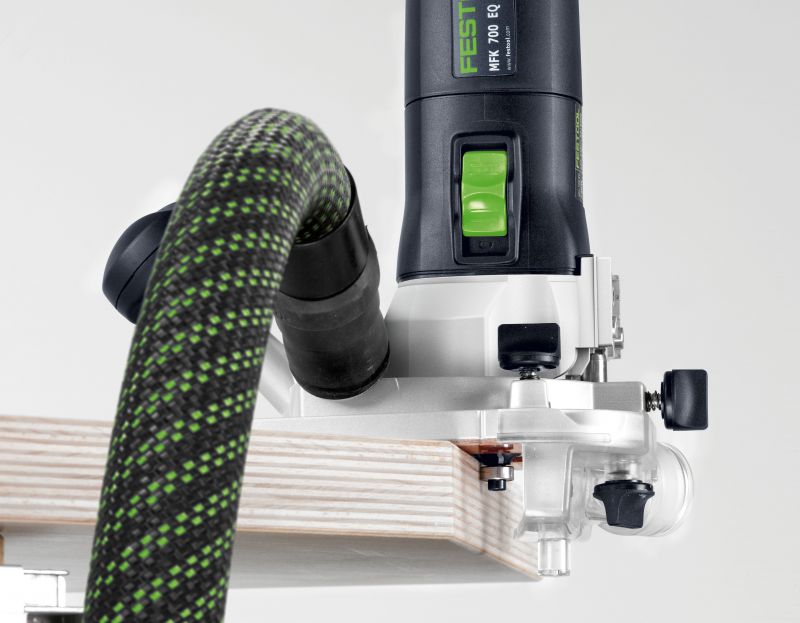

The extractor connector is integrated directly in the router table – for optimum handling and a clear view of the workpiece.

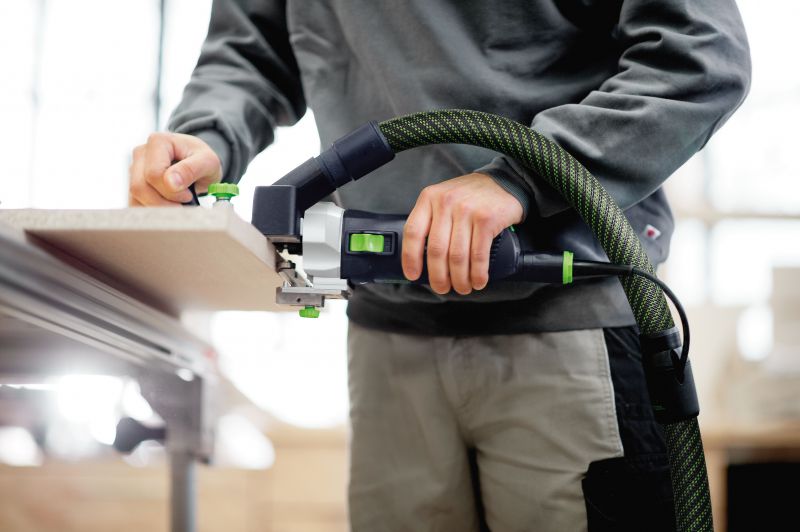

The right motor arrangement for every application: The motor can be installed horizontally or vertically on the router table.

Because of the MMC electronics, the speed of the MFK 700 can be quickly adapted to the working material and is kept constant under load. The temperature monitoring of the motor also guarantees a long service life.

Thanks to the plug-it system, the device can be changed quickly – directly via the cable and not via the socket or extractor: One cable for all devices. And even if the cable breaks, it can be replaced quickly without any problems.

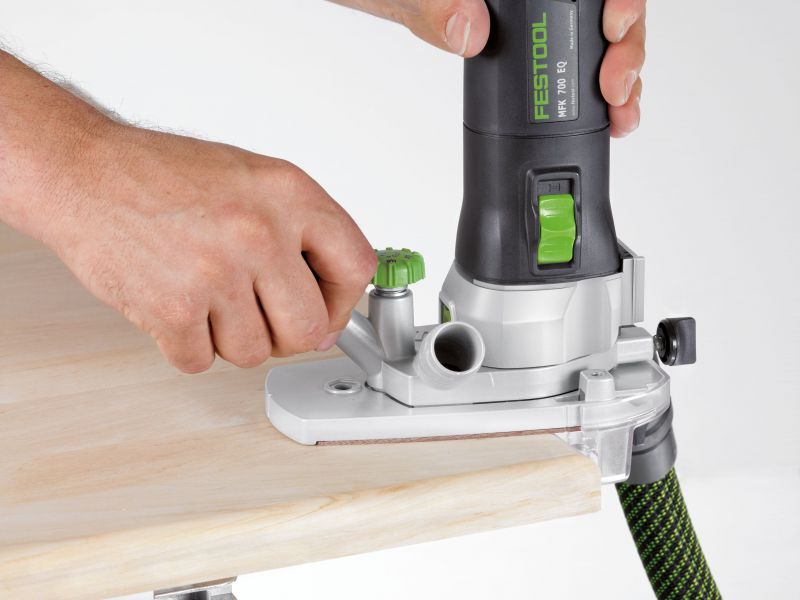

The routing height can be adjusted accurately to a tenth of a millimetre. The lock prevents the router table from moving during operation and is easy to operate.

Specifications

• Power consumption 720 W;
• Idle engine speed 10000 - 26000 min⁻¹;
• Collet dia. 6.00 - 8.00 mm;
• Routing depth fine adjustment range 14.00 mm;
• Max. cutter diameter 32.00 mm;
• Dust extraction connection diameter 27 mm;
• Cable length 4.00 m;
• Product weight without accessories 2.30 kg;
• Transport weight incl. accessories 6.1 kg;
• Drive type Mains
• Routing: Uncertainty (vibration) K 1.50 m/s²;
• Routing: Uncertainty (noise) K 1.50 dB;
• Routing: Total vibration average, Ah 2.50 m/s²;
• Routing: Standards series EN 60745-2-17;
• Routing: A-weighted sound pressure level, LpA 81.00 dB(A);
• Routing: A-weighted sound power level, LWA 92.00 dB(A)

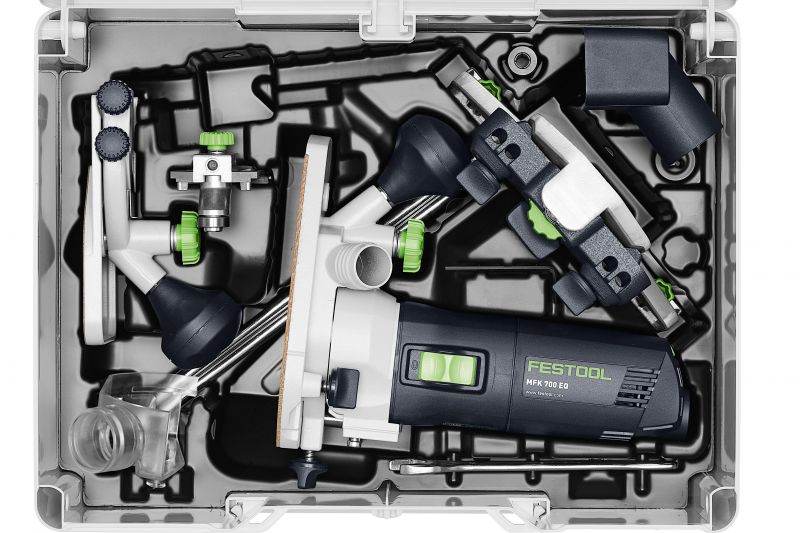

Supplied with:

• parallel side fence with fine adjuster SA-OF 1010/MFK,
• 1.5° router table,
• Ø 8 mm clamping collet,
• Ø 1/4" clamping collet (6.35 mm),
• open ended spanner,
• WAF 19,
• contact pad,
• screwdriver,
• WAF 3,
• extraction hood,
• plug it-power cable (4 m),
• Systainer SYS3 M 187
