Festool 578018 110V OF 1010 REQ-Plus Router With LED Lighting & Systainer SYS3 M 237 Case

Festool 578018 Router OF 1010 REQ-Plus 110V

Lights on for maximum precision.

The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel side fence can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The ring provides shadow free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.​

• Handy: Thanks to the compact design and low weight.
• Unobstructed view: Clearly visible routing area.
• Well lit: Thanks to the rechargeable LED work light in the base panel.
• In an instant: Quick and easy cutter changes.
• Precise: Simple routing depth adjustment, accurate to 1/10 mm.
• Steady: Torsionally rigid router table due to guide columns on both sides.
• Parallel side fence: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool free adjustable guidance jaws.
• Safer: Thanks to restart protection.
• Material specific: MMC electronics for optimal work and temperature monitoring.
• Integrated: Chip extraction system directly integrated into the router table for D 27 and D 36 hose diameters.

• Maximum precision for your work.
• Best view and an LED light.
• Versatile accessories with even more uses.

The double-sized column clamp makes the router extremely torsionally rigid and the routing depth can be set to an accuracy of 1/10 mm in a matter of seconds. The parallel side fence is robust and thanks to the fine adjustment, can be precisely adjusted all without any additional tools. Everything you need for a precise routing result.

Thanks to a clearly visible working area, you have a clear view of the router and scribe mark. The LED light ring provides shadow-free lighting from all sides in two brightness levels. It is directly integrated into the base plate and is therefore close to the workpiece. You can therefore always see exactly where the router is cutting.Its wide variety of accessories, such as routers, routing templates, guide rails and the jointing system VS 600 means that the possible applications of the OF 1010 R are virtually unlimited.

• Lighting all the way around
• The best option for precision
• Double column clamping
• Robust parallel side fence
• Lightweight structure with excellent ergonomics
• Cutter replacement in record time
• Fine adjustment
• Everything in one Systainer
• Accurate work – thanks to the guide rail
• The right router for every application
• Clean and healthier working with a system

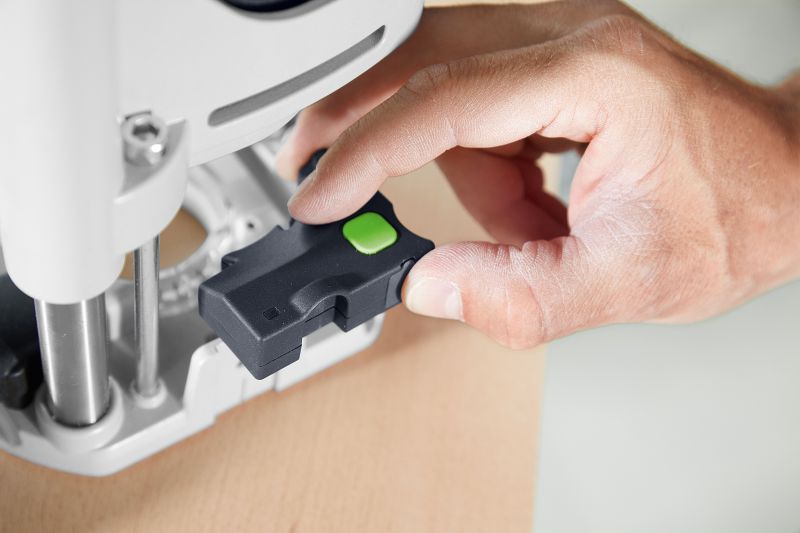

The LED light with two brightness levels is integrated into the base panel and provides lighting directly on the workpiece. The battery unit is removable and can be recharged via the USB-C interface.

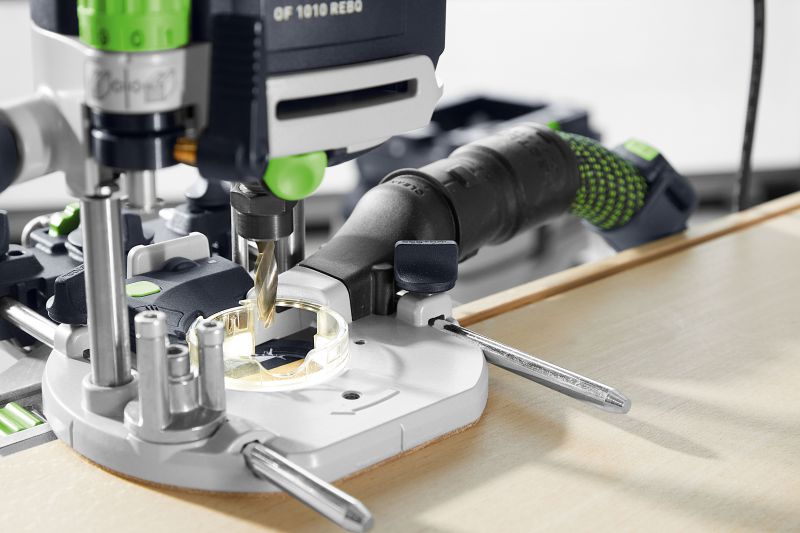

The clearly visible work area of the OF 1010 R offers an unobstructed view of the router. This enables users to achieve cutting results with absolute precision.

The OF 1010 R is clamped to both guide columns at the same time. This means that the router is secured in place with absolute torsional rigidity. This ensures perfect routing results and time-consuming reworking is a thing of the past.

The parallel side fence can be quickly and precisely adjusted without any tools. The guidance jaws provide a seamless stop area.Its ergonomic handle makes the OF 1010 R rest particularly snugly in your hand and makes guiding the machine safe and convenient.

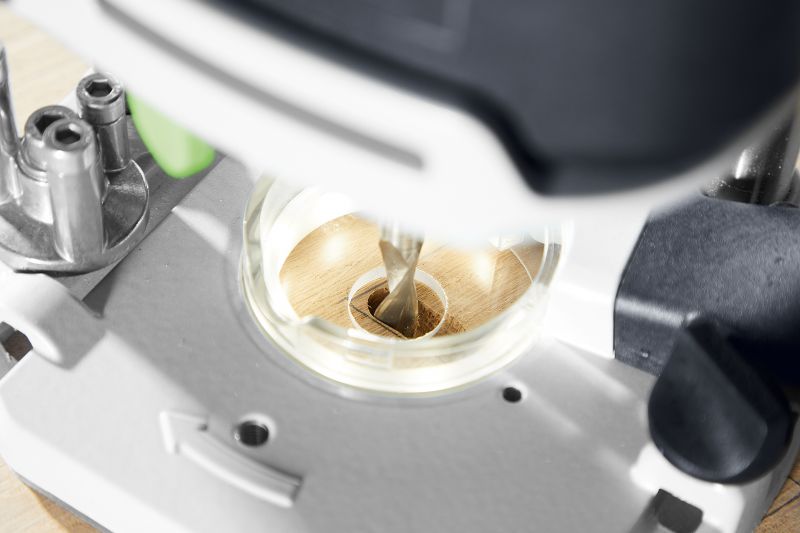

The cutter of the OF 1010 R can be changed quickly and safely thanks to the easy to access work area.The OF 1010 R has a precise depth adjuster. It takes just a few seconds and minimal effort to finely adjust the routing depth accurately to a tenth of a millimetre using the dial.

The OF 1010 R accessories Systainer contains many practical aids, such as guide rail adapters, base runners, copying rings and much more (included in the scope of delivery of the Set versions or available separately).

The guide rail adapter enables dead-straight cut-outs along the guide rail. (Adapter included in the scope of delivery of the Set versions or available separately.)

Unconditional quality is uncompromising. That's why we recommend using original Festool cutters. Machines, router bits and accessories – we provide optimal equipment from a single source for versatile and efficient working.

Forms the perfect combination with Festool extractors for an unobstructed view of the workpiece and for healthier, precise, time-saving work. The bayonet fitting makes it easy to attach and securely hold D 27 and D 36 suction hoses.

Specifications

• Power consumption 1010 W;
• Idle engine speed 9500 - 23000 min⁻¹;
• Collet dia. 6.00 - 8.00 mm;
• Routing stroke 55.00 mm;
• Routing depth fine adjustment range 8.00 mm;
• Bench opening 50.00 mm;
• Dust extraction connection diameter 27/36 mm;
• Cable length 4.00 m;
• Product weight without accessories 3.20 kg;
• Drive type Mains

• ​Routing: Uncertainty (vibration) K 2.00 m/s²;
• Routing: Uncertainty (noise) K 3.00 dB;
• Routing: Total vibration average, Ah 5.50 m/s²;
• Routing: Standards series EN 62841;
• Routing: A-weighted sound pressure level, LpA 92.00 dB(A);
• Routing: A-weighted sound power level, LWA 103.00 dB(A)

Supplied with:

• parallel side fence with fine adjuster SA-OF 1010/MFK,
• Light module LM-OF 1010 R,
• Ø 8 mm clamping collet,
• Ø 1/4" clamping collet (6.35 mm),
• open ended spanner,
• WAF 19, plug it-power cable (4 m),
• Systainer SYS3 M 237
