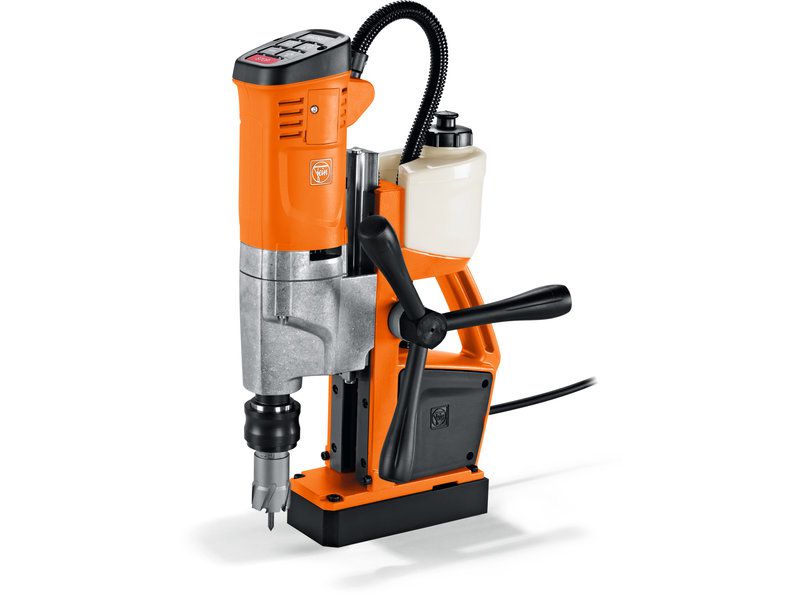

Fein KBU35QW 240V Universal Magnetic Core Drill 35mm 1100W

Fein KBU 35 QW 240V Universal Magnetic Core Drill 35mm 1100W

Small and powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation and maximum functionality for flexible working on the construction site.

• Extremely resilient construction thanks to sturdy machine design with swivel-mounted motor cable protection hose. Designed for tough use in industry and manual trades.
• Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1100 W high-power motor with high speed stability for reliable and economical working.
• With clockwise/anti-clockwise operation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
• Small and lightweight.
• Simple operating concept avoids mix-ups and can be clearly seen by the user.
• Additional magnetic switch in the drill jig.
• Tool-free core bit quick change system.
• Speed-controlled tacho electronics.
• High magnetic holding force.
• Convenient magnetic holding force display.
• Integrated coolant tank.
• Feed handwheel can be moved from one side to the other.
• Tilt sensor.
• Speed saving "memory function".

Specification:

• Input1 100 W
• Output 550 W
• Speed, full load 130 - 520 rpm
• Twist drill max. Ø16 mm
• Core drill, drilling depth max. 50 mm
• Tapping M 14
• Countersinking max. Ø31 mm
• Reaming max. Ø16 mm
• Carbide core drill bit max. diameter 35 mm
• HSS core drill max. Ø35 mm
• Core drill holder 3/4 in Weldon
• Changing the core bit tool-free
• Stroke 135 mm
• Total stroke range 260 mm
• Magnetic holding power 10 000 N
• Magnetic foot dimensions 175 x 80 mm
• Cable with plug 4 m
• Weight according to EPTA 10,6 kg

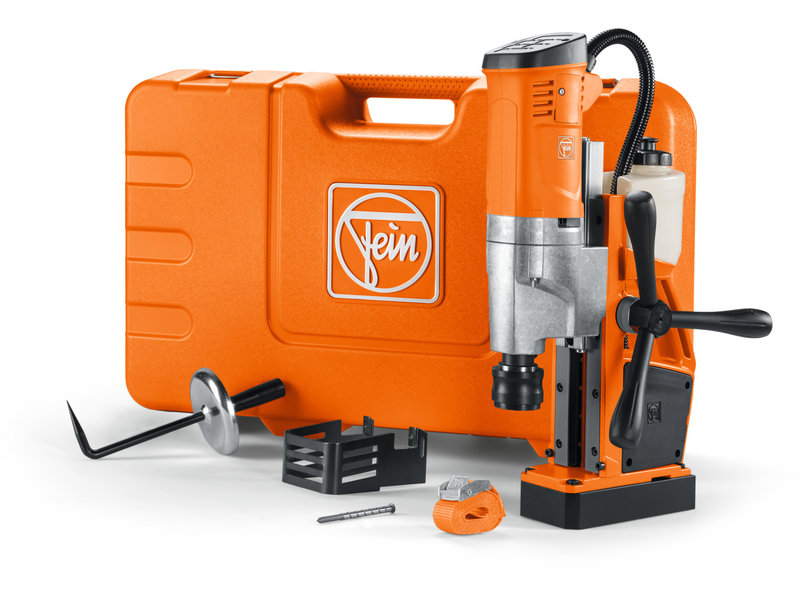

Supplied with:

• 1 case
• 1 coolant tank
• 1 lashing strap
• 1 swarf hook
• 1 centering pin
• 1 contact guard
