Fein ASCM18-4QMP AS 18V Brushless 4-Speed Combi Hammer Drill Bare Unit With L-BOXX

Fein ASCM18-4QMP AS 18V Brushless 4-Speed Combi Hammer Drill Bare Unit With L-BOXX

Features:​

• 4-speed solid metal gearbox. With speeds of up to 4000 rpm for optimum cutting speeds in metal for any holes between 1.5 and 80 mm.
• Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs.
• Very safe working. Kickback monitoring stops the tool.
• The QuickIN headers can be changed in a matter of seconds and without the need for tools when users switch between applications in metal and timber and have just one tool.
• Switchable striking mechanism for drilling in stone and masonry up to 13 mm.
• Extendible extra handle for more control.
• The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible.
• High torques up to a maximum of 130 Nm.
• QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
• Electronic torque setting (15+1).
• Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material.
• Bit and belt holder on the side for ergonomic and flexible handling.
• Fixes 10 x 400 mm screws without pre-drilling.
• AMPShare interface makes 1400 screw connections (5 x 40 mm in timber) possible per battery charge (ProCORE 4 Ah).
• Extensive user protection features include restart protection, electronic overload protection and brake.
• The innovative adjustment function enables screw connections to be made in timber at a reduced speed for perfect results.
• Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
• Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
• Ideally equipped for every job. Mobile working with the L-BOXX system.

Specifications

• Battery voltage: 18 V
• Battery compatibility: Li-ion / ProCORE Li-ionBattery interface: 18 V AMPShare
• Motor: brushless
• Gearbox: 4-speed
• Accessory interface: QuickIN MAX
• Speed, no load: 430 / 850 / 2 000 / 4 000 rpm
• Impacts: 6 450 / 12 750 / 30 000 / 60 000 rpm
• Max. torque (hard/soft): 130 (70 / 50) Nm
• Torque levels: 15 + 1
• Drill chuck clamping width: 1.5 - 13 mm
• Fastening: 10 x 400 mm
• Drilling diameter in steel, core drill bit: 30 mm
• Drilling diameter in steel, hole saws: 80 mm
• Capacity in wood Ø: 60 mm
• Capacity in stone Ø: 13 mm
• Tapping: M 14
• Weight without storage battery: 1.40 kg

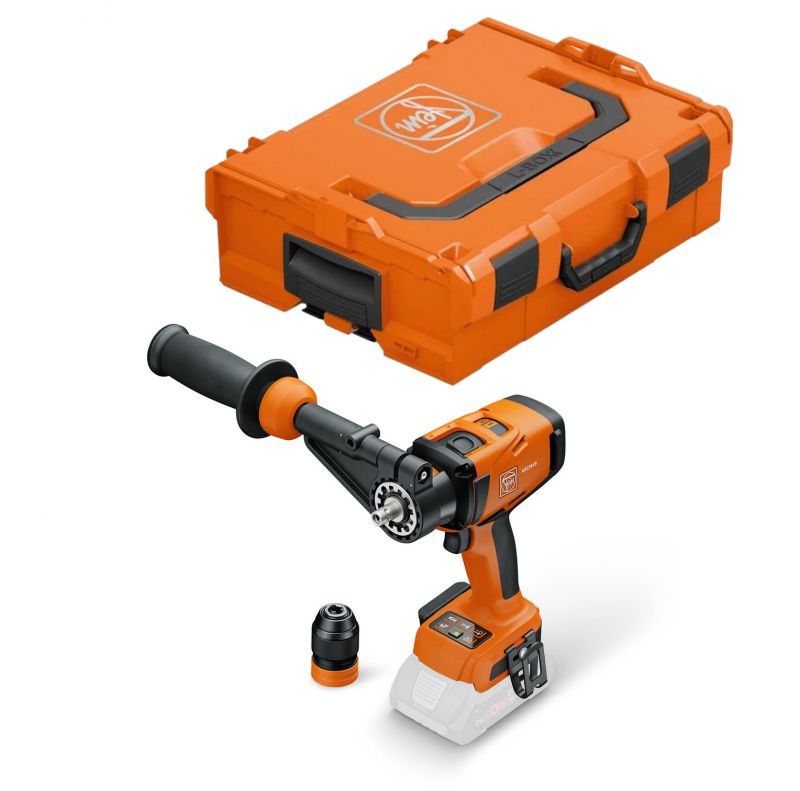

Contents

• 1 QuickIN drill chuck (120 Nm)
• 1 belt clip
• 1 magnetic bit storage
• 1 x telescopic handle
• 1 tool case (L-Boxx 136)
