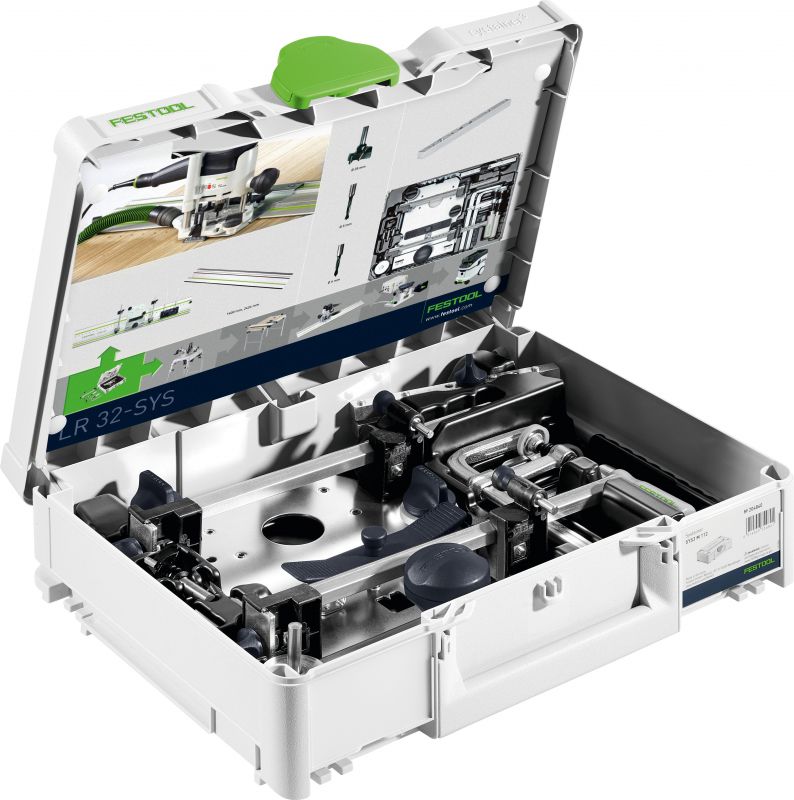

FESTOOL 576799 Hole Drilling Set LR 32-SYS With Systainer SYS3 M 112

Product Ref:
FES576799
Festool
      Click & Collect in Store
    In Our Stock
    Ready For Despatch
ONLY £539.00 INC
£449.17 EXC
Order within 22h 15m for next working day delivery on Thursday 5th December
LOGIN TO ADD FAVOURITES
£2.25 LOYALTY POINTS
FESTOOL 576799 Hole Drilling Set LR 32-SYS With Systainer SYS3 M 112
Product Ref:
FES576799
Festool
    In Our Stock
    Ready For Despatch
ONLY £539.00 INC
£449.17 EXC
Order within 22h 15m for next working day delivery on Thursday 5th December
£539.00
INC
Features & Specification

FESTOOL 576799 Hole Drilling Set LR 32-SYS With Systainer SYS3 M 11

Suitable for tool types:
for OF 900, OF 1000, OF 1010, OF 1010 R, OF 1400 in the FS-LR 32 hole drilling system

Holes in series.

Hole series are always drilled with a spacing of 32 mm and a hole diameter of 5 mm or 3 mm. The hole series drilling system is a complete set for fast and simple production of series of holes for shelf supports, rear wall supports and fittings with the OF 1010 or OF 1400 router. Everything in a single Systainer.

  • Everything that you need for a series of holes at hand in one Systainer
  • With the LR 32 system – comprising the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and the hole drilling system – precise rows of holes spaced 32 mm apart can be drilled with the Festool router
  • The LR 32 guide rail is aligned quickly and parallel to the two side stops, which are positioned by means of an adjustable stop at the workpiece and guide rail
  • The guide rail is precisely positioned with 9, 5, 16 or 32 mm edge clearance over the stopper in the longitudinal direction
  • Centring mandrel for perfect centring of the router on the guide plate
  • Spring-loaded positioning rocker for effective operation when drilling the hole series
  • Perfectly guided through fine adjustment of the guide play and additional handle on the guide plate
  • Properly secured thanks to the supplied guide rail clamps
  • The most important hinge location cutters are already included in the set
  • for use with hole line guide rails

Main applications

  • Preparing holes series with 32 mm spacing
  • Drilling of fittings like cupboard hinges

Specifications



  • Hole spacing: 32.00 mm
  • Length of series of holes (without guide extension): 1400 / 2424
  • Side stop setting range: 0 - 110 mm

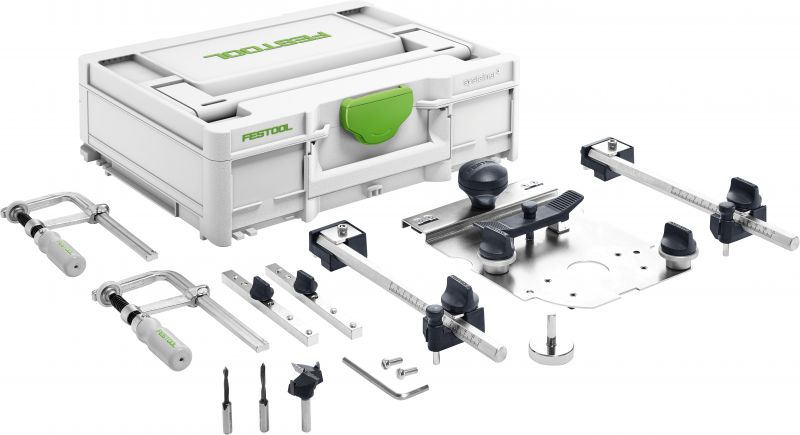

Supplied with:

  • guide plate
  • centring mandrel
  • hinge location cutter HM Ø 35 mm
  • dowel drill HW Ø 5 mm (V-shaped tip)
  • dowel drill HM Ø 5 mm (with centring bit and pre-cutter)
  • 2 parallel side fences with adjustable stop
  • FSZ 120 fastening clamps (two units)
  • Longitudinal stop
  • screwdriver, WAF 5
  • Systainer SYS3 M 112
