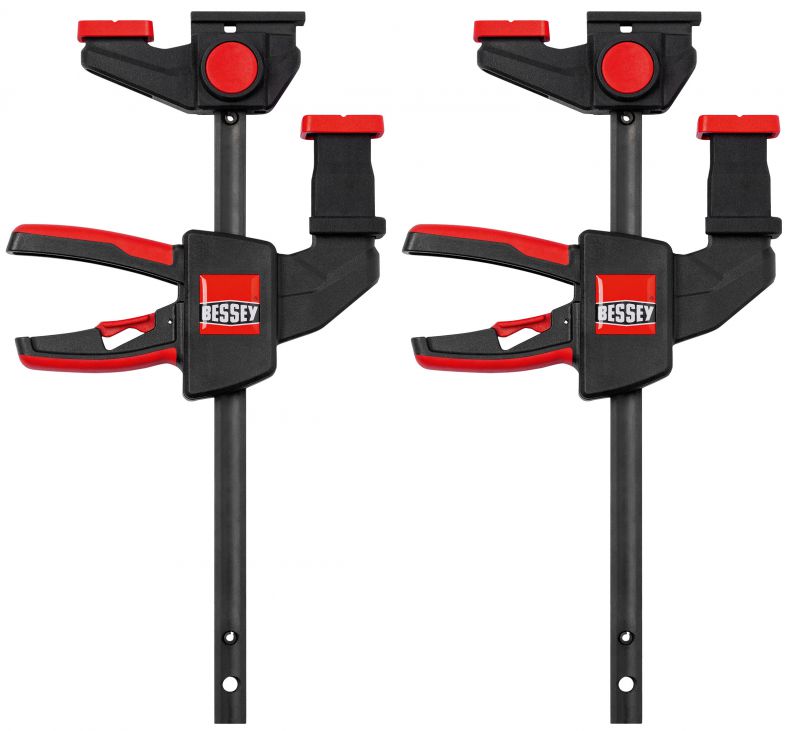

Bessey EZR15-6 2PCS. One Hand Clamp Set Clamp Step Over-Guide Rail
- A Guide rail clamp + a One Handed Clamp With special guide on the top section for grooves 12 x 6.5 mm to 12 x 8 mm .

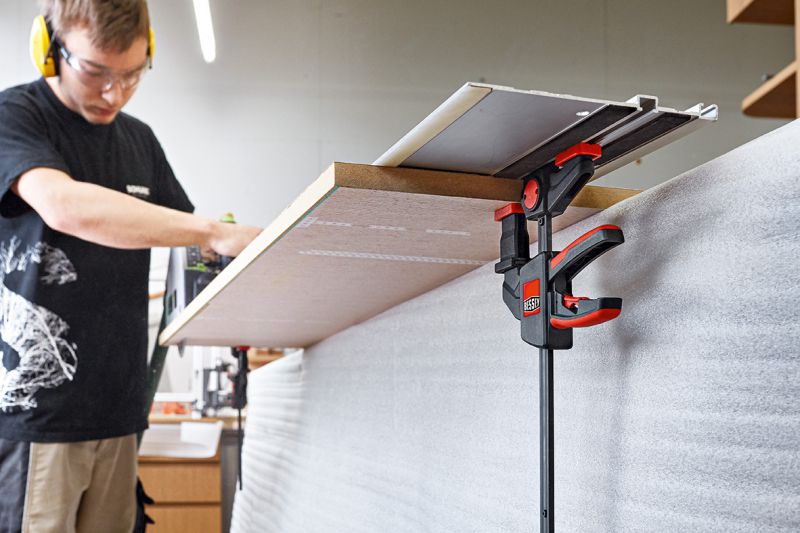

- Use with adapter on the bottom section and rotated top section for secure fastening of guide rails from Festool, Protool, Metabo, Makita, Hitachi, etc. and for clamping in profiles and on work benches
- Use with or without adapter on the top or bottom section for step-over clamping
- Use without adapter – for clamping or spreading Clamping force up to 750 N
Convenient technology
Ergonomic and safe handling, thanks to sophisticated technology:
- due to the high quality 2-part plastic grip with pump lever behind the rail for safe access from both directions
- due to the release handle integrated in the grip for quick adjustment of the sliding bar and for releasing the clamp
- due to the cross prism integrated in the plastic protective caps for the secure fastening of round, pointed and angular pieces
Robust design
Modern aesthetics meet with longevity here:
- due to the use of high-quality materials, such as fibreglass-reinforced polyamide for the top and bottom, as well as hardened, tempered, and burnished steel for the profiled rails
- due to the plastic housing, the grip mechanism is protected from dust and chips
Features
- With special guide on the top section for grooves 12 x 6.5 mm to 12 x 8 mm
- Use with adapter on the bottom section and rotated top section for secure fastening of guide rails from Festool, Protool, Metabo, Makita, Hitachi/Hikoki, Dewalt, etc. and for clamping in profiles and on work benches
- Use with adapter on the top or bottom section for step-over clamping
- Use with or without adapter – for clamping or spreading
- Clamping force up to 750 N
- Ergonomically shaped 2-part plastic handle with pump lever behind the rail
- On carded hang pack
Specifications
- Opening: 150mm
- Throat depth: 60mm
- Spreading width: 120-310mm
- Rail: 14 x 5mm
