Trend LOCK/JIG/A Large Lock Jig

Product Ref:
TRELOCKJIGA
Trend
      Click & Collect in Store
    In Our Stock
    Ready For Despatch
ONLY £123.95 INC
£103.29 EXC
Order within 2h 8m for next working day delivery on Friday 22nd November
We have 1 left in stock
LOGIN TO ADD FAVOURITES
£1.03 LOYALTY POINTS
Trend LOCK/JIG/A Large Lock Jig
Product Ref:
TRELOCKJIGA
Trend
    In Our Stock
    Ready For Despatch
ONLY £123.95 INC
£103.29 EXC
Order within 2h 8m for next working day delivery on Friday 22nd November
£123.95
INC
Features & Specification

Trend LOCK/JIG/A Large Lock Jig

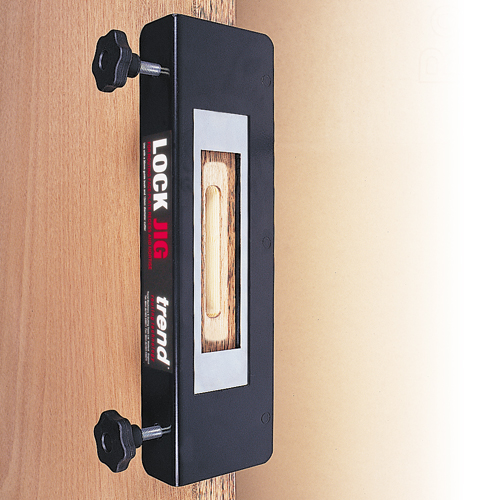

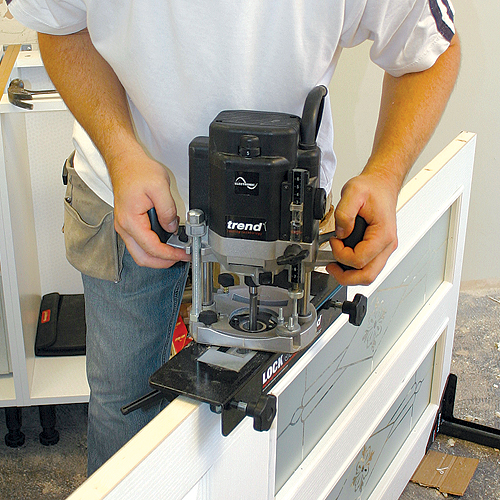

  • Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate for larger locks quickly & accurately.
  • Suitable for DDA (Disabilty Discrimination Act) lock size.
  • 20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise.

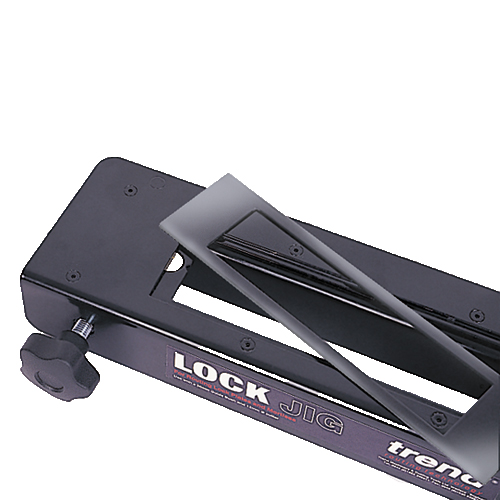

  • Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).
  • Suitable for doors 34mm to 58mm thick.
  • An auger bit and drill is required to complete deep mortises.

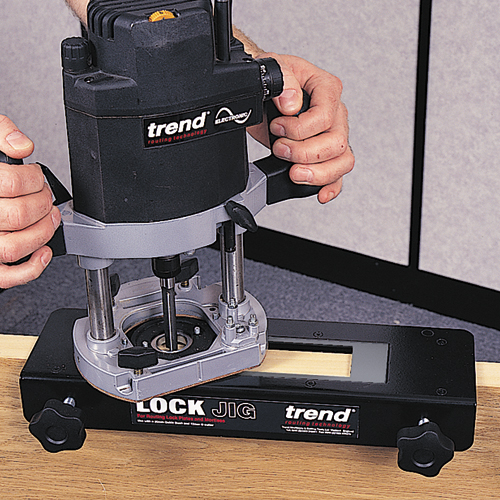

  • The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.
  • Suits DIN style locks.
Specifications:
  • Door thickness min. 34 mm
  • Door thickness max. 58 mm
  • Includes templates for locks having the following
    Face-plate Dimensions
    Metric
    20x235 mm radius end Template 1
    24x235 mm radius end Template2
  • Mortise Dimensions
    Metric Template
    17x170 mm A*
    *Mortise is actually 180mm to give 5mm clearance each end.

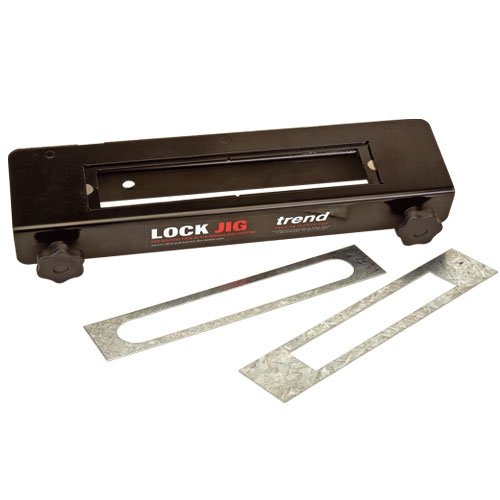

Supplied with:
  • 1 x Guide bush collar
  • 2 x Face plate template
  • 1 x Mortise template
  • 1 x Template adapter
  • 6 x Spacer Fingers
