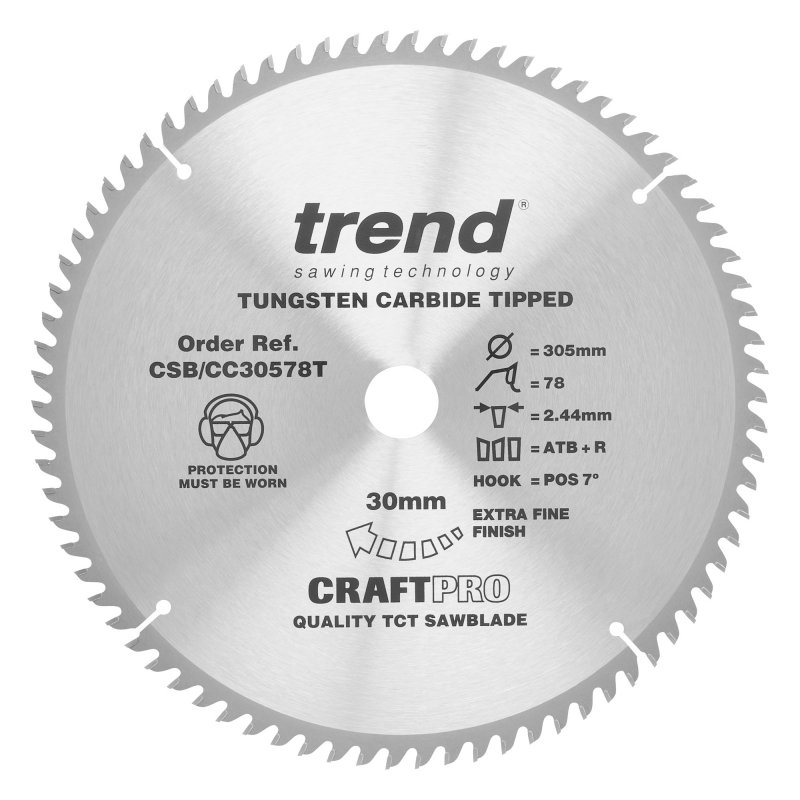

A range of thin kerf tungsten carbide tipped blades for cross-cutting wood and wood-based materials using cordless Mitre saws. Ideal for timber skirting boards, architraves, floorboards, window boards, cladding and decking.
Alternate top bevel raker (ATBR) tooth form with +7¡ hook optimises cutting speed and performance for both ripping and cross-cutting applications.
Microgranular tungsten carbide tips (TCT) for optimum edge retention.
Thin kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
Precision ground alloy steel plate to maintain flatness.
Body hardened and tempered to minimise deflection under load.
Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
Etched blade information to EN847 safety standard.
Reamed bore ensures precise spindle fit.
Dimensions:
D=12 inches
D=305 mm
Bore=30 mm
Kerf=2.44 mm
Plate thick=1.6 mm
No. of Teeth=78
Tooth form=ATB + Raker
Hook=7 degrees
Quick Selector No.=CT30.3
Colour Code=White Yellow
Type=Mitre Saw Crosscutting
Cut Finish=Extra fine
Max rpm=4800
Dewalt DHS780
Diameter Imperial: 12
Diameter Metric: 305
