Record Power Coronet Herald Heavy Duty Cast Iron Electronic Vari-Speed Lathe M33 + SC3 Chuck & Including Delivery!

Record Power Coronet Herald Heavy Duty Cast Iron Electronic Vari-Speed Lathe M33

*********PROMOTION**********

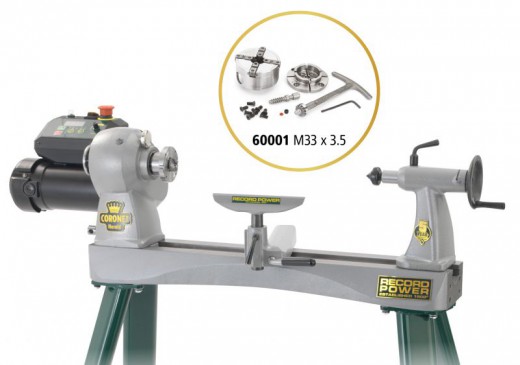

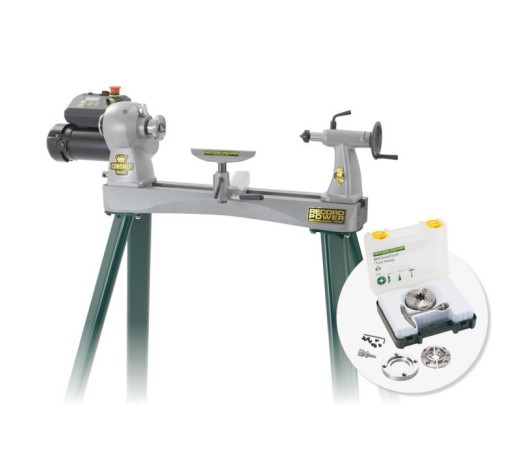

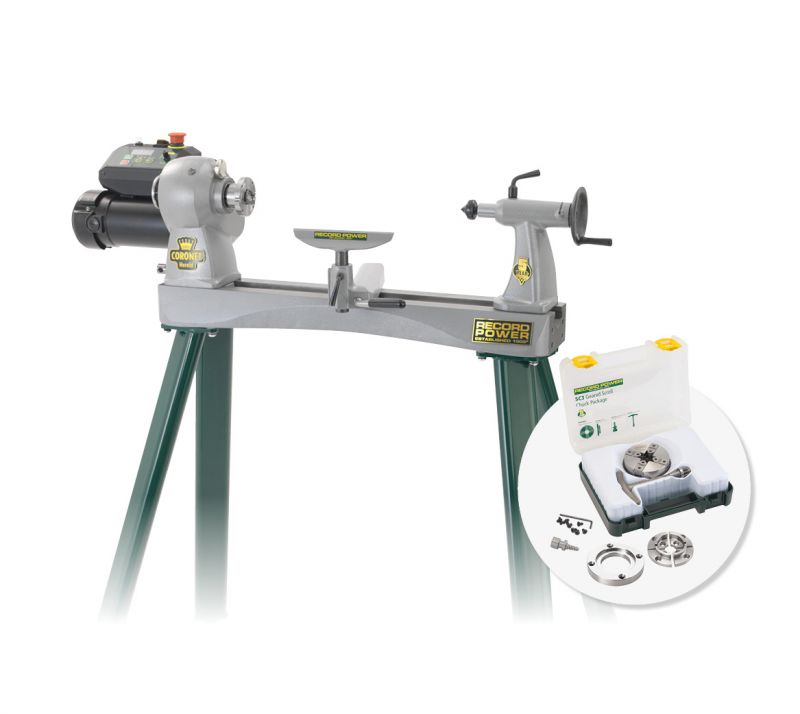

SC3 Chuck Included

FREE DELIVERY!

This brand new lathe from Record Power represents the culmination of many decades of expertise in the manufacture and supply of superior woodturning lathes. Developed with the help of professional woodturners and keen hobbyists, we believe we have produced a world-class machine for woodturners of all levels. Thanks to a number of innovative design solutions the capabilities, features and performance of the 1420 far exceed anything a machine of this size has been capable of before - It brings top-end professional performance at a fraction of the size and cost of comparable heavy duty machines.

To reflect the Record Power heritage in a modern context, the look of the lathe incorporates the elegant and balanced curves of the earlier Coronet series in a more streamlined and efficient form. As well as looking great, the 1420 feels great - The excellence of engineering, ergonomics and quality manufacturing can be felt throughout, making the lathe a pleasure to use whilst delivering rock solid performance.

Heavy Duty Spindle Lock and Indexing
Holds the spindle securey and offers a full 24 point indexing function.

State-of-the-Art Motor
The 750 W motor features the latest in motor technology to give huge amounts of torque, comparable to lathes over twice the size and motor rating.

Full Electronic Variable Speed
Instantaneous speed change is achieved using the easily accessible control panel. Reversing is also offered for sanding or left handed turning (Must be used only with suitable locking systems for chucks and accessories).

3 Step Pulley
A 3 step pulley is provided for maximum versatility. For most turning the middle pulley is perfect and provides good torque but if you need maximum torque comparable to much larger lathes for heavy cuts or low speed work, then the bottom pulley has immense torque capability. For very small work, polishing or burnishing acrylics, the top pulley gives access to very high speeds.

Rotating and Repositionable Headstock
Unlike most cast bed lathes, the headstock of the 1420 can be rotated 360º, optimising access and also making it ideal for left handed turners, who can effectively turn this machine into a fully left-handed lathe using the reverse facility of the control system. A bearing system beneath the headstock allows it to be located in popular positions. The headstock can also be moved along the lathe bed if required.

Cam Lock
The tool rest holder is locked in place instantly with the easy to use cam locking system.

Innovative Tailstock Design
The tailstock has been designed to allow easier access to the cam lock handle at the rear. It is also profiled and open on one side for comfortable grip when sliding along the bed.

Faceplate Included
A 3” faceplate is included with the 1420 for mounting bowl blanks.

Revolving Centre Included
The revolving centre helps reduce burning of the wood when holding it between centres as the centre rotates with the wood, greatly reducing friction.

Hand Wheel
The headstock features a substantial hand wheel to turn the spindle, making fitment of headstock accessories much easier.

Tailstock
The tailstock accepts 2 Morse taper accessories, providing excellent strength and solidity.

Heavy Duty Spindle Lock and Indexing
Holds the spindle securely and offers a full 24 point indexing function.

Heavy Duty Tool Rest Stem
The 25 mm diameter tool rest stem helps minimise vibration, giving a smoother and easier cut.

Specifications

• Maximum bowl diameter: 533 mm
• Maximum between centres: 508 mm
• Maximum swing over bed: 355 mm
• Speeds:
  Pulley One:    95 – 1055 rpm
  Pulley Two:   140 – 1868 rpm
  Pulley Three: 290 – 3890 rpm
• Motor: 750 W
• Thread: M33 x 3.5
• Taper: 2 Morse Taper
• Weight: 48 kg
• Size: Width 870 mm, depth 290 mm, height 252 mm
